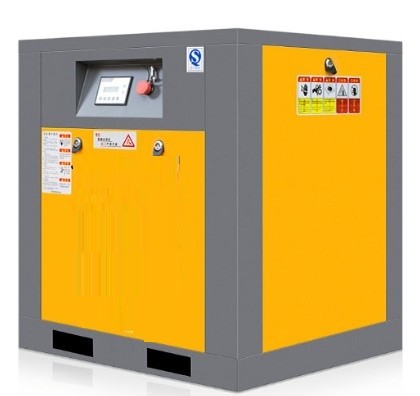

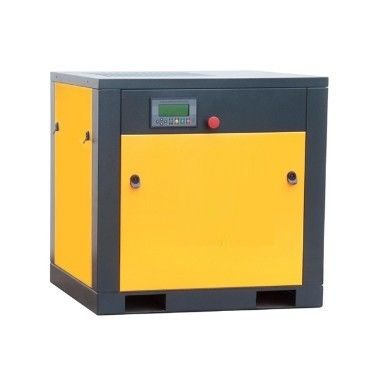

10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min

  • 10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min
  • 10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min
  • 10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min
Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number CHIC-10A
Minimum Order Quantity 500
Price USD 40-45
Packaging Details packing size(L×W×H)：800mm×600mm×1040mm
Delivery Time 7days
Supply Ability 500Pcs/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 7.5kw 10hp CHIC-10A 8bar Belt Driven Used Small Rotay Screw Air Compressor Air Delivery 1.1m³/min
Electricity Three Phase 220/60 Or 440/60 (V//Hz) Pressure 8Bar
Noise Level 62±2dB Power 10HP/7.5KW
N.weigh 214KGS Color Yellow
High Light

1.1m3 Min belt driven screw compressor

,

10L belt driven screw compressor

,

10L small screw compressor
Leave a Message
Product Description

Motor:
World-renowned high-performance motor, protection class IP54, insulation class F, the bearing adopts heavy-duty bearings,

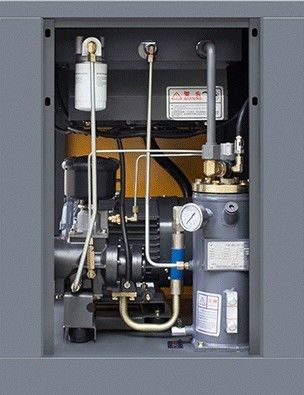

Screw host:
The high-precision imported twin-screw rotor is adopted, and the volumetric efficiency is as high as 99%. The powerful heart determines the excellent performance of the whole machine
Oil and gas separator
The high-precision imported filter paper rotary filter is used to completely filter out the impurities in the lubricating oil to ensure that the lubricating oil is clean and extend the service life of the compressor
Air valve
Imported air valves from world-renowned brands can automatically adjust air volume from 0-100% to reduce operating costs according to the system air volume requirements

Adopt advanced numerical control processing erquopment for production with high precision and reliability

Low -speed design strict correction of dynamic balance ,computer - optimized design make the operation more stable

Lower noise . longer life more reliable qulity suitable for 24-hour continuous operation

Using advanced surface spraying decoration technology , the product is beautiful and elegant

10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min 0



10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min 1





Technical parameters



Model CHIC-10
Power 10HP/7.5KW
FAD: (M3/MIN) 1.1
Pressure 8bar
Cooling Air-cooling
Lubricant 10L
Noise level 62±2dB
Drive method Belt type
Discharge temperature Environment temp+15℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method straight
Air outlet: Pipe diameter(inch) R 3/4"
Oil content of air <2ppm
Dimension 800MM*600MM*1040MM
Net weight 214KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



10L Belt Driven Screw Compressor Small 214KGS 1.1m3 Min 2

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



1.Are you a factory or trading company?

A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
2. What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
3. How long does delivery take?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
4. Is OEM acceptable?
A:Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
