0.8Mpa Corrugated Box Strapping Machine Carton Erector And Sealer

  • 0.8Mpa Corrugated Box Strapping Machine Carton Erector And Sealer
  • 0.8Mpa Corrugated Box Strapping Machine Carton Erector And Sealer
Place of Origin China
Brand Name CHIC
Certification CE ISO
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 15 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 50 piece per momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Carton Box Erector Machine Sealing And Strapping Line Function Open Fill And Seal The Box With Tapes Strap It With Belt
Driven Type Electric Condition New
Dimension 3770*670*1450mm Carton Size L200-600mm; W150-500mm; H150-500mm
Voltage 3kw Machine Line Weight 1500kg
High Light

Erector corrugated box strapping machine

,

0.8Mpa corrugated box strapping machine

,

carton erector and sealer
Leave a Message
Product Description

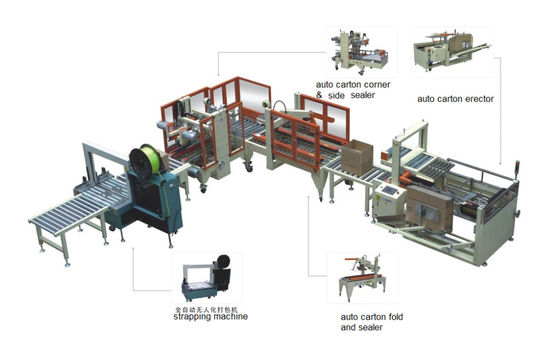

Product line description:



Automatic packing box

The automatic packaging assembly line automatic unpacking, automatic sealing, automatic packaging is equal to one. The utility model has the advantages of wide application range, small occupation area, simple operation and stable performance.

Production efficiency: 10-30 box / min



Vertical box machine,Vertical Carton /box Erector

 Application:

This machine is for the soft cartons, multi-layer carton boxes and daily used cartons, it is usually installed at the beginning of the cartons fill and seal packing lines, to feed the formed cartons and to open and form the cartons one by one to service for the next steps.Its speed decides the whole line speed too, so it is a very import machine.

Specifications;

Capacity

500 case/hour

Air compress

p≥0.8Mpa, normal≥1M3

Power

5.5kw

Originally material requirement

according our standing

Weight

2000kg

Power pressure

AC 3P 380~400V, 50HZ;control power AC22


Technical parameter:

Suitable for carton: L200 ~ 450 * W150 ~ 400 * H100 ~ 400mm

Mesa height: Min 600mm, Max 720mm

Sealing speed: 10~12 box / min

Use power: 200W, 220V/50HZ

Using air source: 0.6-0.7MPa

Suitable adhesive tape: W48 ~ 60 ~ 75mm * L1000 code

Machine weight: net weight 400Kg



Mechanical size: L2000 * W1900 * H1450mm

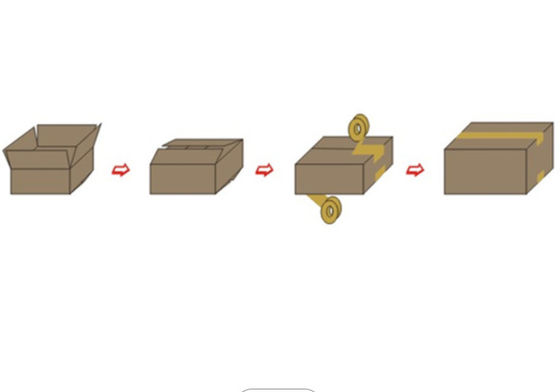

Carton folding and sealing machine

0.8Mpa Corrugated Box Strapping Machine Carton Erector And Sealer 0

This series is based on stand-alone models, up and down, “a” type automatic sealing packaging

Transmission design approach, using both sides of the drive belt Automatic carton packaging operations up and down affixed with sealing

Specifications for carton, manual adjustment (1 minute) to be completed

Packaging materials, cardboard boxes can be used in this series

Economic, labor-saving, beautiful, lightweight models

Mechanical properties of precision and durable, stable operation and long life

Assurance than an artificial stickers with beautiful, fast, high efficiency.

Main configuration: VTV motor seizure Taiwan Theological electric switches, Japan NSK Bearings, Xiangrong bearing dual brake casters



FAQ:


Q1:What’s the MOQ of the machines?

The MOQ is 1 set.

Q2:What’s the carton material does the machine use?

3-layer or 5-layer corrugated cartons.

Q3:Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.

Q4:Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.

Q5:Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating. Q6:What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.

Q7:Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.

Q8:What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
