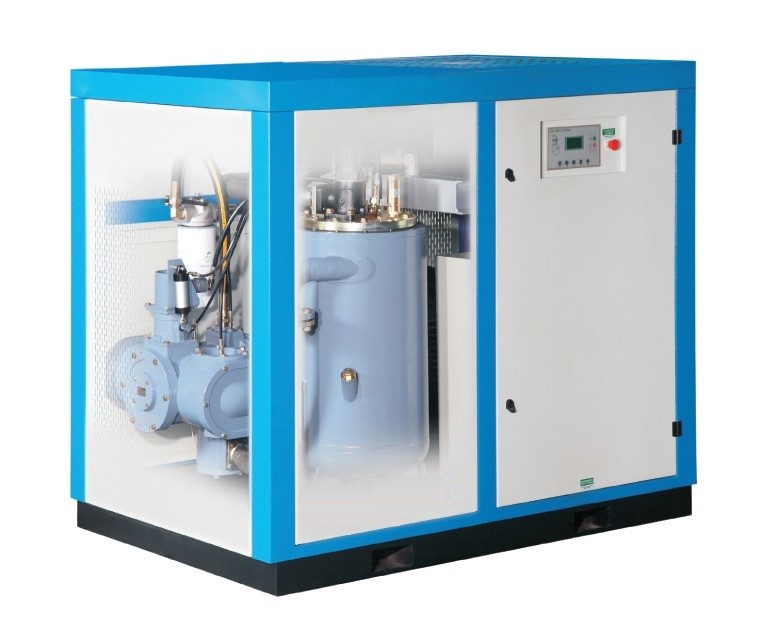

12.5 Bar Oil Free Screw Air Compressor 380V Portable Rotary
| Place of Origin | CHINA |
|---|---|
| Brand Name | OEM |
| Certification | CE |
| Model Number | CHIC-15BF/12.5 |
| Minimum Order Quantity | 1 |
| Packaging Details | packing size(L×W×H)：1600mm×1000mm×1335mm |
| Delivery Time | 7days |
| Supply Ability | 500Pcs/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | CHIC-15BF/12.5 12.5Bar Direct Driven Used Rotary Oil Free Screw Air Compressor | Air Delivery | 1.61m³/min |
|---|---|---|---|
| Electricity | Three Phase 380/60 Or 440/60 (V//Hz) | Pressure | 12.5Bar |
| Noise Level | 63dB | Power | 20HP/15KW |
| N.weigh | 750KGS | Color | Blue |
| High Light | 12.5Bar oil free screw air compressor,380V oil free screw air compressor,380V portable rotary screw air compressor |
||
Product Description

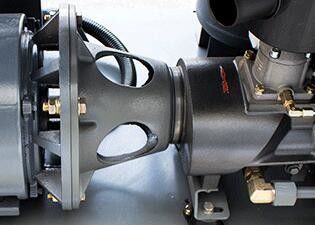

CHIC screw compressor adopts frequency conversion motor, with wide speed range, strong lower torque reduction and good stability.
Energy saving: energy saving more than 15% compared with dry oil-free compressor.
oil-free compressed air, purified compressed air, no oil pollution risk.
Technical parameters of oil-free screw air compressor of water lubrication of CHIC series
Because the purified water takes part into the compressing process to seal, cool and lubricate, it increases efficiency. With the same motor power, The consumption material of oil-free screw air compressor is only water, air filter and water filter, the maintenance cost is very low.
Technical parameters
| Model | CHIC-15BF/10 | ||
| Power | 20HP/15KW | ||
| FAD: (M3/MIN) | 2.12 | ||
| Pressure | 10 bar | ||
| Cooling | Air-cooling | ||
| Noise level | 63dB | ||
| Drive method | Direct drive type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
| Air outlet: Pipe diameter(inch) | R1 | ||
| delivery | 15-20 days | ||
| Dimension | 1680MM*1000MM*1335MM | ||
| Net weight | 750KGS | ||
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
