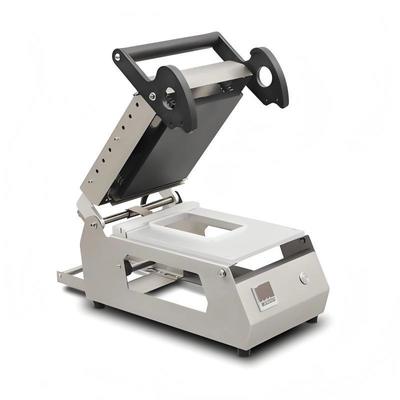

Compact Design 304 Stainless Steel Electrically Heated Manual Tray Sealing Machine DQ-1 Food and Meat Package for Plastic Containers

Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Model Number DQ-1
Document DQ-1-3-5 Cross Cut.pdf
Minimum Order Quantity 10 pcs
Price 315$
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and avoid corrosion.
Delivery Time 15 working days
Payment Terms L/C,T/T,Western Union
Supply Ability 10 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 304 Stainless Steel Sealer Packing Machine Compact Design Manual Labor-saving Food Heat Sealer Machine Packaing Material Rolling Film
Type Manual Warranty Of Core Parts 1 Year
Highlight

304 Stainless Steel Manual Tray Sealing Machine

,

Electrically Heated Table Top Tray Sealer

,

1 Year Warranty Manual Food Sealer

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Compact Design 304 Stainless Steel Electrically Heated Manual Tray Sealing Machine DQ-1 Food and Meat Package  for Plastic Containers 0Machine Description
CH-FR160E
 Compact Design 304 Stainless Steel Electrically Heated Manual Tray Sealing Machine DQ-1 Food and Meat Package  for Plastic Containers 1Compact Design 304 Stainless Steel Electrically Heated Manual Tray Sealing Machine DQ-1 Food and Meat Package  for Plastic Containers 2

 Compact Design 304 Stainless Steel Electrically Heated Manual Tray Sealing Machine DQ-1 Food and Meat Package  for Plastic Containers 3

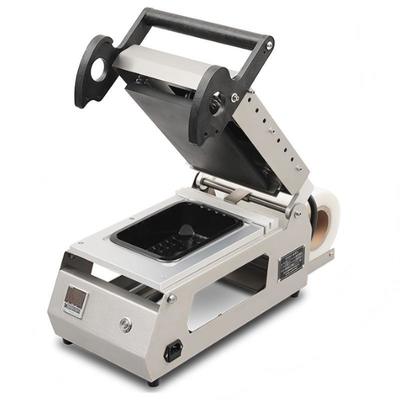

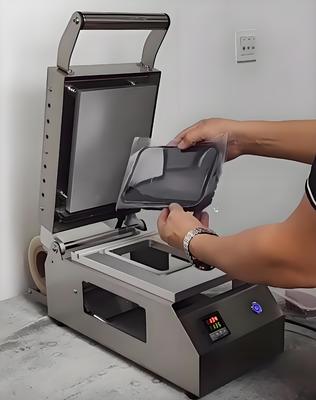

The sealing packaging machine without filling with fresh-keeping gas is suitable for the packaging of instant food or various

typesof frozen foods in stores, supermarkets, and other places. The product is easy to operate, accessible to people of all ages;

themain body structure is made of stainless steel material, and the mold is treated with anodizing at 6061, ensuring safety and

hygiene; it has a desktop design, occupying a small area; it can be customized with a dedicated LOGO color film for beautiful

sealing and brand promotion. According to different production requirements, Xianyang CHIC Intelligent Equipment Co., Ltd.

can customize sealing packaging equipment suitable for different foods and high cost-effectiveness for users.


Technical parameters


                                 Machine configuration

FR160E
Style Circle cut
Equipment model FR160E
Maximum width of rolled film (mm) 260
Maximum diameter of rolled film (mm) 180
Packaging speed (times/min) 7~8
Capacity (box/hour) 1 out 1 ≈480
Power supply (v/hz) 220/50
Total power (kw) 0.6
Equipment weight (kg) 10
Equipment size L × W × H (mm) 580*300*260
Gross weight of packaging (kg) 15
Packaging outer box size L × W × H (mm) 610×360×295

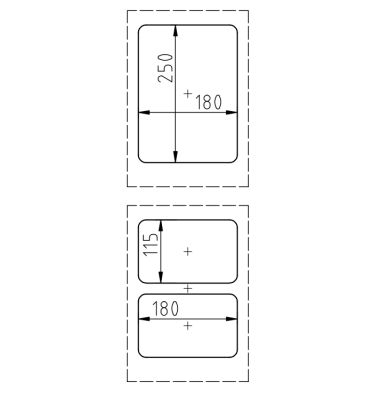

The maximum size of the tray (mm) Output 1 200×140×140


                                                Main accessories

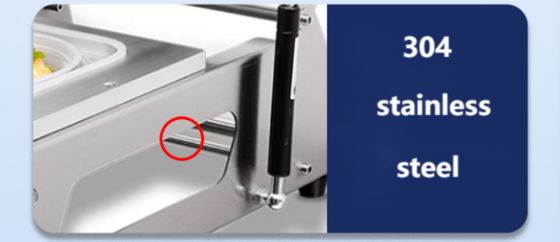

Shell 304 stainless steel

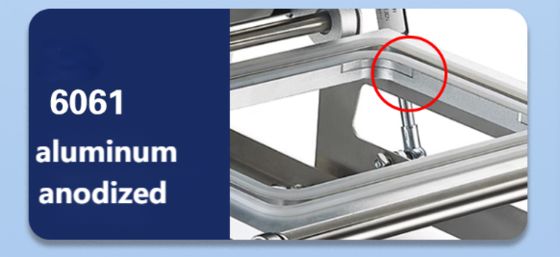

Mold section 6061 aluminum
Gas spring Yang Dan
Knob temperature control Korean Rainbow
power switch Lez

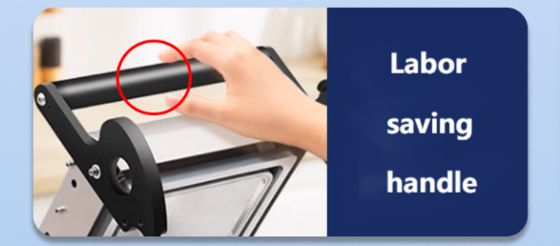

Labor-saving handle Reinforced Nylon
