PE NILO Full Automatic Packing Machine Weighing 520V OPP
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Model Number | 520V |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Weighing Food Rice Full-Automatic Food Vacuum Seal Packing Machine 304SS | Packing Material | OPP/CPP OPP/CE PET/PE NILO/PE PE Laminated Rolling Film |
|---|---|---|---|
| Power | 220V 50/60HZ 2KW | Machine Size | 2923*1620*3468mm |
| Packing Film Width | 80-1050 Mm | Bag Size | W:100~200mm L: 100~280mm |
| Packing Speed | 15~40bags/min | Machine Weight | 1280kg |
| Highlight | PE NILO full automatic packing machine,520V full automatic packing machine,PE NILO weighing packing machine |
||
Product Description

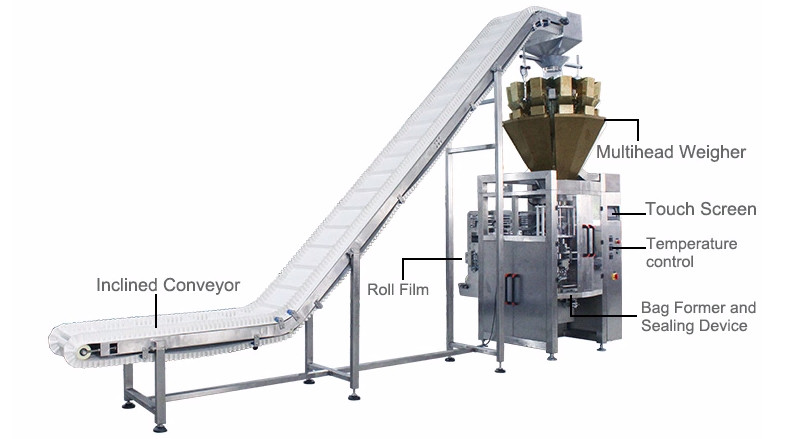

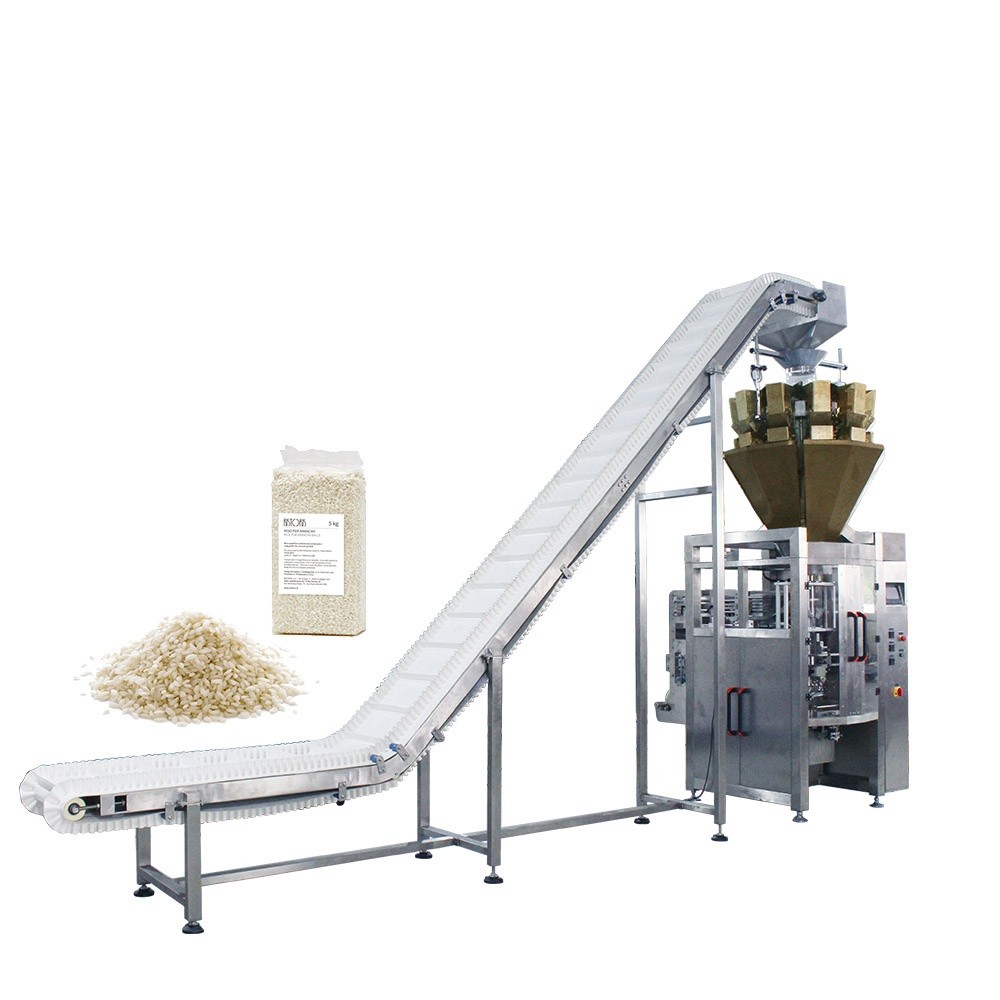

Automatic Weighing Food Rice Full-Automatic Food Vacuum Seal Packing Machine 304SS
Applications:
Automatic Weighing Food Rice Full-Automatic Food Vacuum Seal Packing Machine 304SS is suitable for all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Main Features:
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Machine specification:
| Model No. | ZQ-420V | ZQ-520V | ZQ-620V | ZQ-720V | ZQ-820V |
| Product Name: | Rice Vacuum Packaging Machine | ||||
| Machine Material: | 201/304 Stainless Steel | ||||
| Voltage: | 220V, 50/60HZ | ||||
| Power: | 3KW | 4KW | 5KW | 6KW | 7KW |
| Packing Speed: | 15~40bags/min | 10~30bags/min | 10~35bags/min | 5~15bags/min | 5~15bags/min |
| Bag Width: | 100~200mm | 100~250mm | 100~300mm | 100~350mm | 100~400mm |
| Bag Length: | 100~280mm | 100~340mm | 100~380mm | 100~480mm | 100~550mm |
| Film Material: | OPP/CPP OPP/CE PET/PE NILO/PE PE | ||||
| Film Tickness: | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm |
| Warranty: | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Dimension: | (L)1457mm | (L)1630mm | (L)1700mm | (L)1780mm | (L)1600 |
| Machine Weight: | 500kg | 550kg | 600kg | 700kg | 800kg |
| Optional Device: | Date Coder/Air Exhaust Device/ Nitrogen Device/Inflatable Device/Punching Device/Tear Notch Device/Gusset Device/Linking Bag Device | ||||
Machine details:
Samples:
Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.
After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.
Operation training:
1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling.
2: Welcome to our factory learning.
3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
FAQ
What information from client is neccessory for correct quotation?
1. What is your product?
2. The size of your bag?
How to connect with gas source?
Buyer prepare gas bottle, then connect our machine directly with hose will be ok. We leave a hole on the machine for gas connect.
What kind of air compressor shall we use?
Small air compressor with 30L gas tank, and supply 0.6-0.8Mpa air pressure will be ok.
Shipment term?
1. We ship under FOB or CIF by sea usually.
2. This machine is small, it can also be send by express, or by air.
Payment?
40% prepayment before production, balance before shipment.
Lead time?
7-15days after prepayment.
Do you test machine before shipment?
We will test and send video for confirmation before shipment.
