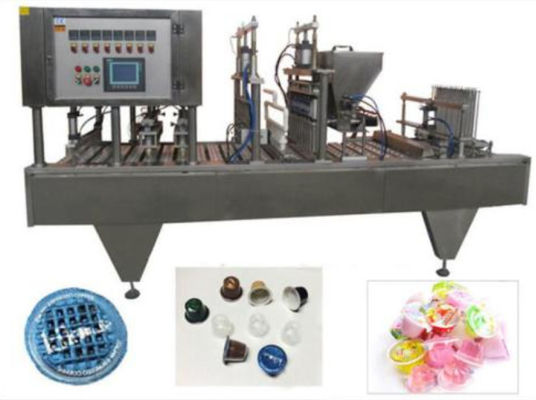

Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4

  • Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4
  • Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4
Place of Origin China
Brand Name CHIC
Certification CE ISO
Model Number NC-4
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 35 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Liner Type 4 Lane Coffee Capsule Cup Filling Sealing Packaging Machine Driven Type Pneumatic
Filling Head 6 Accuracy Less Than 1%-2%
Filling Arrange 5-100g Dimension L 3500*W 1100*H 1750 Mm
Warranty 1 Year Style Full Automatic
Highlight

NC-4 coffee capsule sealing machine

,

100g coffee capsule sealing machine

,

100g NC-4 automatic cup sealing machine
Leave a Message
Product Description

Liner Type 6 Lane Tea Capsule Cup Filling Sealing Packaging Machine



Descrption :



This machine is automatic high-speed sealing machine. From drop cups, filling, put the film, print dates, twice sealing to out are all automatic operation. The electrical and pneumatic components are all using famous brands ( can be also customized by customers’ requirements), with stable quality, long life.



Applications:



It is mainly used in the products packing like: Tea powder or grains tea coffee powder, milk powder, rice, wheat powder and so on.



Technical Paremeter



Item Espresso coffee capsule filling sealing machine/Coffee Capsule Packing Production Line/Espresso Coffee Capsule Packing Product
Model NC-4/KC-4 NC-6/KC-6 NC-8/KC-8 NC-10/KC-10 NC-12/KC-12
Capacity 3000-4000cups/h 4000-5000cups/h 5000-6000cups/h 6000-7000cups/h 7000-8000cups/h
Filling Capacity 5-30ml 5-30ml 5-30ml 5-30ml 5-30ml
Total Power 4KW 4.5KW 5KW 5.5KW 6KW
Air Consumption 0.65 cubic meters/min 0.68 cubic meters/min 0.70 cubic meters/min 0.73 cubic meters/min 0.78 cubic meters/min
Voltage 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Temperature Range 0-300℃ 0-300℃ 0-300℃ 0-300℃ 0-300℃
Machine Weight 800KG 900KG 950KG 1000KG 1100KG
Size (mm) 3500*800*1750 3500*1100*1750 3900*800*1750 3900*1100*1750 3900*1300*1750



Linear Type 6 Lanes Tea Capsule Filling & Sealing Machine

Features:

  • The whole machine with advanced design, reasonable structure, reliable performance.
  • Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs.
  • Photocell eye calibration, ensure the accuracy of filling.
  • Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design.
  • The sealing edges are smooth and flawless.
  • The machine can be customized according to customer' needs and add other auxiliary functions.

Please don't be hesitate! Contact us and get more Coffee Pod Packaging Machine details!

Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4 0









Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4 1

Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4 2

Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4 3

Liner Type 6 Lane 100g Automatic Cup Coffee Capsule Sealing Machine NC-4 4
