2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags

  • 2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags
  • 2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags
Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Minimum Order Quantity 1 pcs
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tomato Sauce Detergent Liquid Bags Packing Machine Multi Packaging Machine Packaing Material Pre-made Bags,pouches
Type Multi-function Packaging Machine Condition New
Warranty Of Core Parts 1 Year Dimension 1475*1325*1480
Highlight

160mm Detergent Multi Packing Machine

,

2.3kw Multi Packing Machine

,

160mm sauce packing machine
Leave a Message
Product Description

Tomato Sauce Detergent Liquid Bags Packing Machine Multi Packaging Machine



Application:



All kinds of liquid and think-liquid (sauce), fruit juice, seasoning sauce, tomato sauce, peanut butter, jam, chili sauce, hand sanitizer, liquid detergent and so on.

2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags 0

Technical information:

Main Technical Parameter:

Liquid & Thick Liquid Fill-Seal Production Line
Equipment Model RZ8-200 RZ8-300
Bag Size W:70~200mm L: 100~300mm(date coding requires≥ 140mm length) W:160~300mm L: 100~400mm(date coding requires≥ 140mm length)
Filling Range 5~1500g 5~2500g
Packing Speed 20~45Bags/min(depended on the product and filling weight) 10~40Bags/min(depended on the product and filling weight)
Package Accuracy Error≤±1%
Weight 1000kg 2000kg
Dimension 1635mm*1455mm*1480mm (L,W,H) 1695mm*1725mm*1640mm (L,W,H))
Total Power 2.3kw 4kw
Driving Power Source 380V Three-phase Five-line 50HZ
Control Power Source DC24V
Compressed Air Requirement ≥0.45m3/min(Compress air is provided by user) ≥0.35m3/min(Compress air is provided by user)




1.Bag Feeding 2.Date Coding 3.Bag Opening 4.Filling 5.Filling 6.Standby 7.Heat Sealing 8.Forming & OutputStation Process:

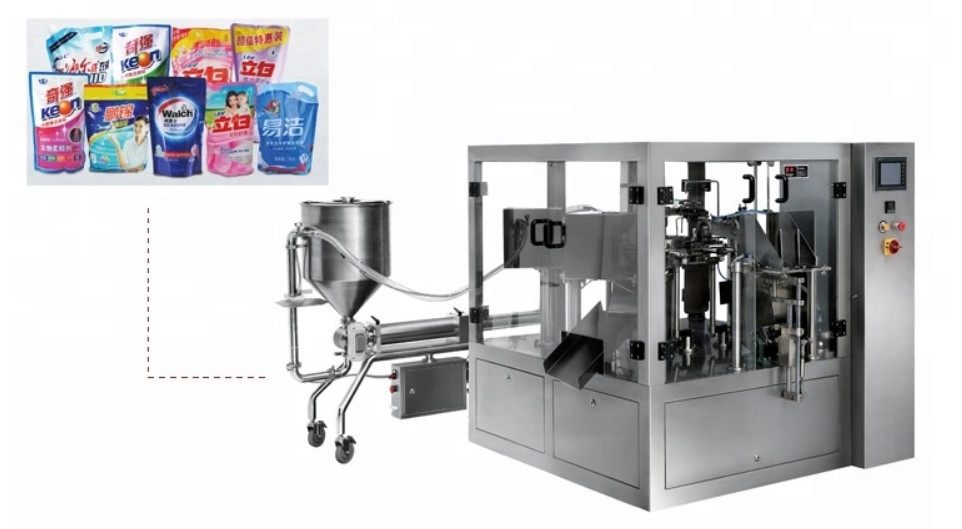

2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags 1



Bag Types:

Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.

2.3kw Multi Packing Machine 160mm Sauce Tomato Detergent Bags 2





NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .





FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.

Q2: Where is your factory located? How can I visit your factory?

A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. We can pick you up from the airport or your hotel. Welcome to visit us!

Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.

Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.

Q5:How long is the delivery time?

A: About 35- 40 working days.
