SUS304 Protein Powder Packing Equipment Filling Machine Jaggery

  • SUS304 Protein Powder Packing Equipment Filling Machine Jaggery
  • SUS304 Protein Powder Packing Equipment Filling Machine Jaggery
Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Minimum Order Quantity 1 pcs
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Milk Coffee Juice Powder Pre-Made Bags Multi Packing Machine Packaing Material Pre-made Bags,pouches
Driven Type Electric And Pneumatic Type Multi-function Packaging Machine
Condition New Warranty Of Core Parts 1 Year
Bag Width 100-210mm Bag Length 100-320mm
Machine Speed 20-50bags/min Filling Arrange 10-1000g
Highlight

Jaggery powder packing equipment

,

SUS304 protein powder packing equipment

,

SUS304 powder filling machine
Leave a Message
Product Description

SUS304 Jaggery Powder Filling Powder Packing Equipment Pneumatic Multi Packing Machine



Milk Coffee Juice Powder Pre-Made Bags Multi Packing Jaggery Powder Packing Equipment SUS304 Filling Machine for coffee and juice powder as well as detergent powder



Application:



This machine is mainly used for packing powder products: such as spice powder, coffee powder, milk powder, detergent / washing powder, curry powder, egg powder, protein powder, stick powder, baby powder, chilli powder, soap powder, masala powder, and mehndi powder etc.

SUS304 Protein Powder Packing Equipment Filling Machine Jaggery 0

Technical information:

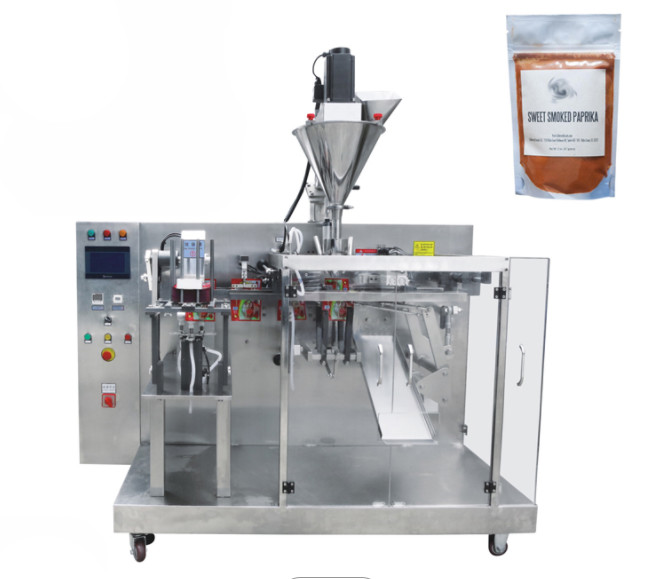

1) This Premade Bag Doypack Automatic Jaggery Powder Packaging Machine is a horizontal mini pick fill seal machine for powder packaging.
2) It is an economical pouch packing machine mini at high working speed (20pcs-50pcs) with multi-function of zipper opening, zipper
closing, euro hole punch, easy tear open.
3) It is composed of a premade pouch powder filling machine, a powder filler and a feeding system.
4) If you want to buy a premade pouch powder packing machine at a low price, this is an ideal one.



Main Features



1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.



Station Process:



1. Pick up pouch
2. Open pouch - from top or bottom
3. Filling product (first time)
4. Filling product (second time) - If the product only needs filling for one time, this station will be removed.
5. Sealing (first time)
6. Taking away finished pouches
SUS304 Protein Powder Packing Equipment Filling Machine Jaggery 1

Optional:

1. Zipper opening
2. Date/Batch No. Printing
3. Euro hole punch

The number of working stations for different functions can be added or removed basing on the products, filling volume and the pouch type.



Specifications:

Main Technical Parameter:

Model
YLM-PMHZ-210PP
Machine name
Premade Bag Doypack Automatic Jaggery Powder Packaging Machine
Bag Size
Width: 100-210mm, Length: 110-320mm
Speed
20-50 bags per minute
Filling volume range
20g-1000g (depending on material)
Power Supply
380V 50Hz 2.5KW
Machine weight
1200kgs
Air consumption
0.7m3/min
Application
spout pouch, doy bag, stand up zipper pouch, 4 side seal bag

hand bag, paper bag, zip lock bag



Bag Types:

Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.







NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .



FAQ



Q1: How to find a Packing machine suitable for my product?



Tell us about your product details and packing requirements.

1. What kind of product you would like to pack?

2. The bag/sachet/pouch size of you need for the product packing(the length and width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag style.



Q2: Is engineer available to serve oversea?



Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3. How can we make sure about the machine quality after placing the order?



Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.



Q4. We are afraid you won't send us the machine after we send you the money?



We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.



Q5. Can you explain me the whole transaction process ?



1. Sign the Contact

2. Arrange 30% deposit to our factory

3. Factory arrange production

4. Testing & detecting the machine before shipping

5. Inspected by customer or third agency through online or site test.

6. Arrange the balance payment before shipment.



Q6: Will you provides the delivery service?



A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
