Premade Bag Pouch Multi Packing Machine Mini Doypack Grains Chips
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Minimum Order Quantity | 1 pcs |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 25 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Grains Chips Pop Corns Pre-Made Bags Multi Packing Machine | Packaing Material | Pre-made Bags,pouches |
|---|---|---|---|
| Driven Type | Electric And Pneumatic | Type | Multi-function Packaging Machine |
| Condition | New | Warranty Of Core Parts | 1 Year |
| Highlight | premade pouch Multi Packing Machine,mini doypack Multi Packing Machine,premade bag packing machine |
||
Product Description

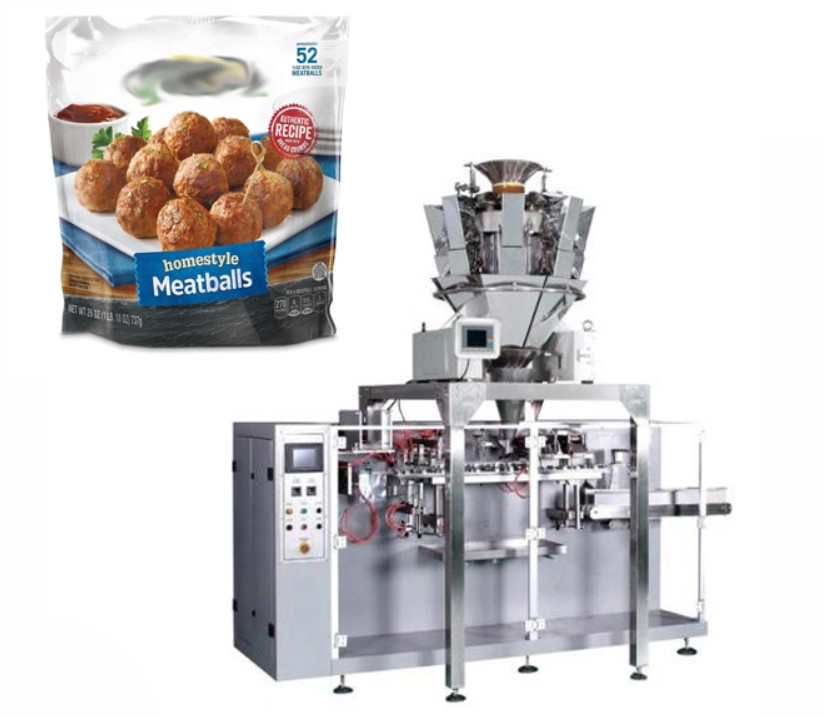

Grains Chips Pop Corns Pre-Made Bags Multi Packing Machine
Application:
1) This automatic premade pouch packaging machine (premade doypack zipper pouch candy nuts cereals seeds sugar rotary packing machine doy pack snacks automatic packing machine) is a mini horizontal premade bag pick fill seal machine.
2) It is an economical pouch packing machine at high working speed (20pcs-40pcs) with multi-functions of zipper opening, euro hole punch, easy tear open.
3) The packaing system is composed of a mini doypack packing machine, a multihead weigher, a z type bucket elevator and a work plastform.
Main Features
1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.
Station Process:
1. Pick up pouch
2. Open pouch - from top or bottom
3. Filling product (first time)
4. Filling product (second time) - If the product only needs filling for one time, this station will be removed.
5. Sealing (first time)
6. Taking away finished pouches
2. Open pouch - from top or bottom
3. Filling product (first time)
4. Filling product (second time) - If the product only needs filling for one time, this station will be removed.
5. Sealing (first time)
6. Taking away finished pouches
Optional:
1. Zipper opening
2. Date/Batch No. Printing
3. Euro hole punch
The number of working stations for different functions can be added or removed basing on the products, filling volume and the pouch type.
3. Euro hole punch
The number of working stations for different functions can be added or removed basing on the products, filling volume and the pouch type.
Specifications:
Main Technical Parameter:
|
Model
|
CHIC-PMHZ-260GP
|
|
Machine Name
|
premade doypack zipper pouch candy nuts cereals seeds sugar rotary packing machine doy pack snacks automatic packing machine
|
|
Bag Size
|
Width: 140-260mm, Length: 160-380mm
|
|
Speed
|
20-40 bags per minute
|
|
Filling volume range
|
200g-2000g (depending on material)
|
|
Power Supply
|
380V 50Hz 4.5KW
|
|
Machine weight
|
1200kgs
|
|
Air consumption
|
0.7m3/min
|
|
Application
|
Doy bag, stand up zipper pouch, 4 side seal bag,
|
|
|
hand bag, paper bag, zip lock bag
|
Bag Types:
Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.
NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
