Stand Up Pouch Zipper Bag Multi Packing Machine Beef Jerky Mini Doypack

  • Stand Up Pouch Zipper Bag Multi Packing Machine Beef Jerky Mini Doypack
  • Stand Up Pouch Zipper Bag Multi Packing Machine Beef Jerky Mini Doypack
Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Model Number JT-300
Minimum Order Quantity 1 pcs
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pre-Made Bags Multi Packing Machine Doypack Packing Machine Packaing Material Pre-made Bags,pouches
Driven Type Electric And Pneumatic Type Multi-function Packaging Machine
Condition New Warranty Of Core Parts 1 Year
Capacity 60bags/min Machine Dimension 1500*1600*1105MM, 1500*1600*1105MM
Highlight

Beef Jerky Multi Packing Machine

,

Mini Doypack Multi Packing Machine

,

Doypack zipper pouch bag packing machine
Leave a Message
Product Description


Automatic stand up pouch zipper bag beef jerky mini doypack packing machine

Application:

Fill free flowing grains, pulses, seeds, salt, tea powder, coffee beans, maize, coffee powder, coconut powder, nuts, candies,dried fruits, pasta, vegetables, snacks, pet food, low weighing engineering products and many more.



1) This stand up pouch filling and sealing machine / liquid soap filling machine / mini pick fill seal liquid detergent filling machine is a horizontal premade pouch mini pick fill seal machine.
2) It is an economical stand up pouch packing machine at high working speed (20pcs-50pcs) with multi-function of zipper opening, zipper closing, euro hole punch, easy tear open.

3) It is composed of a premade pouch packing machine, a liquid material hopper and a feeding system.
4) If you want to buy a premade pouch filling machine at a low price, this is an ideal one.

Specifications:
Model
JT-300D
Premade Pouch Type
standup, resealable, performed, flat bottom, 3 side seal pouch,
zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch, Kraft window-open paper pouch, PE/Soft Pouch
Premade Pouch Size
100-300mm(W) *130-350mm(L)
Speed
Max. 8-18 BPM
Electronic:
Mitsubishi PLC/ Omron Temperature Controller
Omron Power Switch / Schneider Breaker
Pneumatic:
Pneumatics component Airtac from Taiwan;
BOOKA Vacuum generator/ Vacuum Filter
Options
Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gas-flush and vacuum function, Take Away Conveyors, Filling
devices, Ribbon Stamp Printer

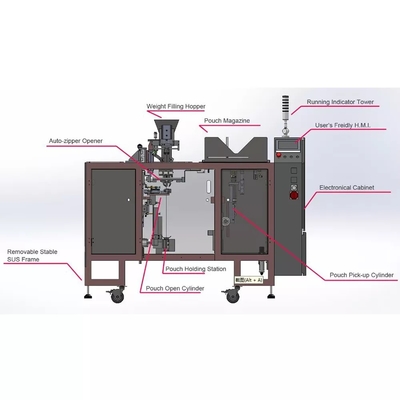

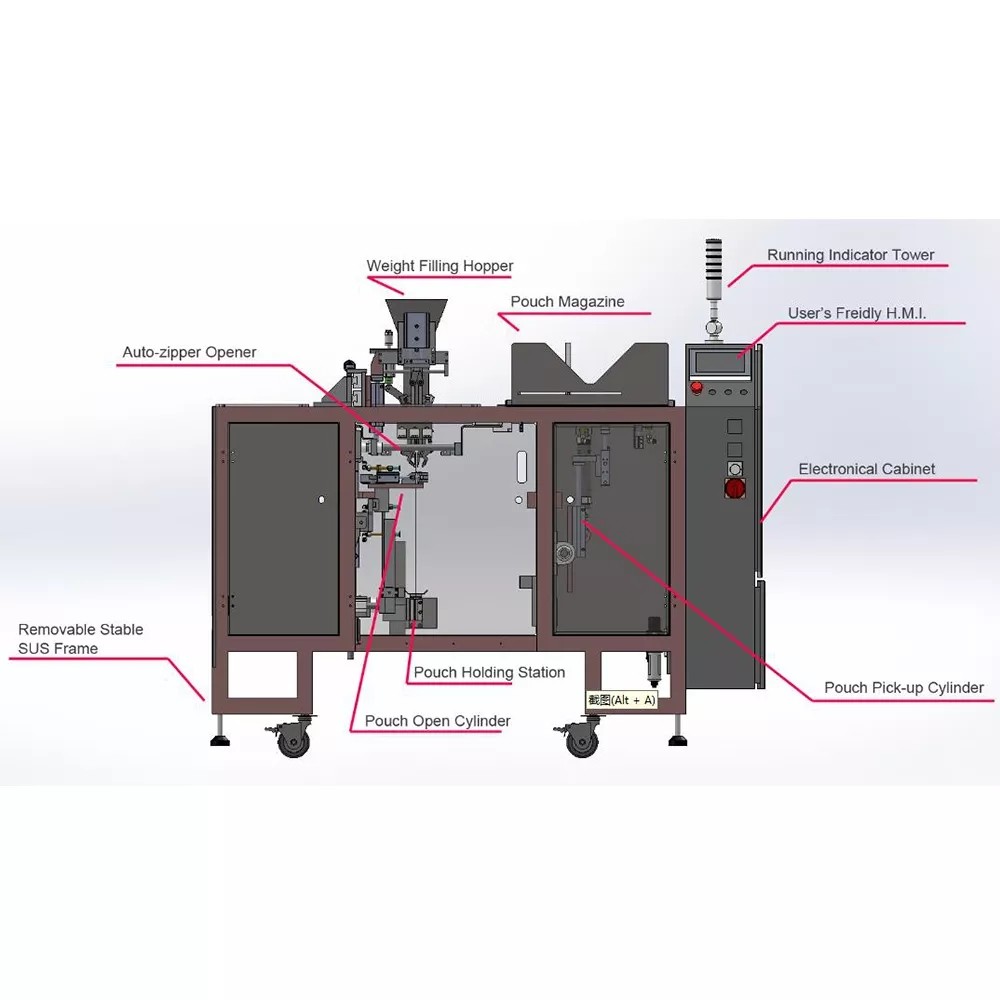

Stand Up Pouch Zipper Bag Multi Packing Machine Beef Jerky Mini Doypack 0
Main Features
1. Full-automatic weigh-form-fill-seal type, efficent and simple to use.

2. Use famous brand electric and penumatic components,stable and long life circle.
3. Use superior mechanical components, reduce the wear outless .
4. Easy to install film, auto correcting the excursion of the film .
5. Apply advanced operating system ,easy to use and reprogramable. To be used on Jintian High quality machine, it makes your packing work wasy and efficiency.



Station Process:



1. Pick up pouch
2. Open pouch - from top or bottom
3. Filling product (first time)
4. Filling product (second time) - If the product only needs filling for one time, this station will be removed.
5. Sealing (first time)
6. Taking away finished pouches


Optional:

1. Zipper opening
2. Date/Batch No. Printing
3. Euro hole punch
The number of working stations for different functions can be added or removed basing on the products, filling volume and the pouch type.





Bag Types:

Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.


Stand Up Pouch Zipper Bag Multi Packing Machine Beef Jerky Mini Doypack 1





NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .


FAQ

Q1: How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?

1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?

A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
