500ML Large Volume Infusion Bottle Filling Production Line Increase Production Efficiency
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE, ISO |
| Model Number | CHIC-S-XT |
| Minimum Order Quantity | 1 |
| Delivery Time | 60 DAYS |
| Payment Terms | Western Union, L/C, T/T, MoneyGram |
| Supply Ability | 1+PC+60 DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 500ML Bottle Filling Production Line,Large Volume Bottle Filling Production Line,Infusion Bottle Filling Production Line |
||
|---|---|---|---|
Product Description
500ML Large Volume Infusion Bottle Filling Production Line
MAIN FEATURES

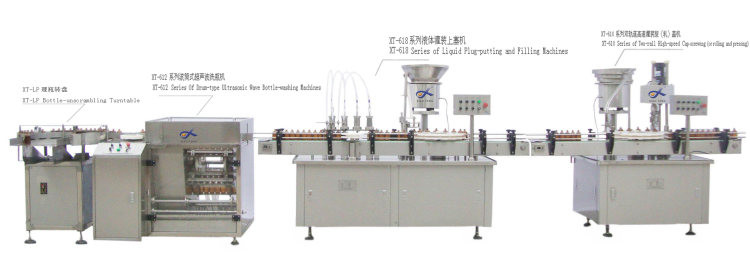

◆This production line consists of four facilities ,XT-LP bottle-feeding machine,XT-612 drum-
type bottle-washing machine,XT-618 plug-putting and flling machine and XT-610 caprolling and
pressing machine.
◆ Suitable for manufacture of large capacity injection,external use agentia and other liquid form.
It can be matched with sterilization and drying facilities.
◆ Uprightbottlesstacked on bottle-feeding machine automaticallyenter into ultrasonic washing
machine and are being gross rinsed with ultrasonicwashing andfne washed with three-water-
and-one-air.Ultrasonic washingmachine is equipped with automatic safety device,which will
not smash bottles as it can stop feeding when bottles are blocked.After washing,bottles are
transported into plug-putting and flling machine.This machine has high flling accuracy and can
be disassembly and sterilized conveniently,adopting quick-joint stainless steel piston pump.It can
stop flling and putting plugs when there are not bottles.Sealed mouth is rigorous and beautiful
with the adopting of three-blade cap rolling and pressing mechanism and pneumatic protector.

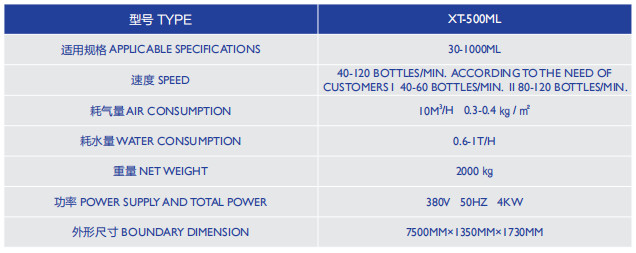

TECHNICAL PARAMETERS
