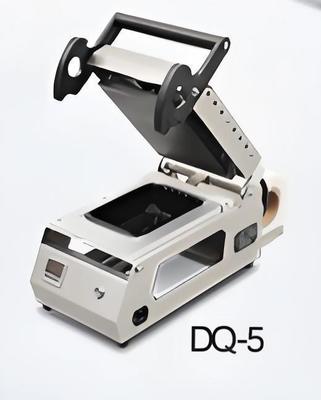

Manual Tray Sealing Machine DQ-5 for Food and Meat Packaging for Plastic Containers Tray Food Tray cross-cut Sealing Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Model Number | DQ-5 |
| Document | DQ-1-3-5 Cross Cut.pdf |
| Minimum Order Quantity | 10 pcs |
| Price | 520$ |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and avoid corrosion. |
| Delivery Time | 15 working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 10 pieces per month |
Product Details
| Name | 304 Stainless Steel Sealer Packing Machine Compact Design Manual Labor-saving Food Heat Sealer Machine | Packaing Material | Rolling Film |
|---|---|---|---|
| Type | Manual | Warranty Of Core Parts | 1 Year |
| Highlight | 220V/50Hz Manual Tray Sealing Machine,1KW Power Food Packaging Machine,21.5kg Weight Tabletop Sealer |
||
Product Description
CH-DQ-5
Machine Description
The sealing packaging machine without filling with fresh-keeping gas is suitable for the packaging of instant food or various types of frozen foods in stores, supermarkets, and other places. The product is easy to operate, accessible to people of all ages; the main body structure is made of stainless steel material, and the mold is treated with anodizing at 6061, ensuring safety and hygiene; it has a desktop design, occupying a small area; it can be customized with a dedicated LOGO color film for beautiful sealing and brand promotion. According to different production requirements, Xian Yang Chic Intelligent Equipment Co., Ltd. can customize sealing packaging equipment suitable for different foods and high cost-effectiveness for users.
Machine parameters
| DQ-5 | |
| Style |

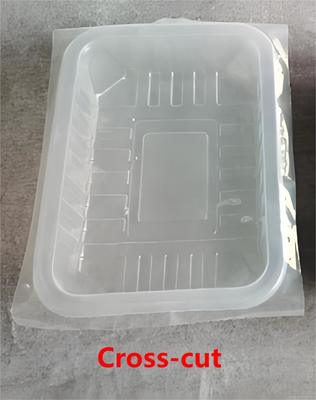

Enlarge Cross cut |
| Equipment model | DQ-5 |
| Maximum width of rolled film (mm) | 265 |
| Maximum diameter of rolled film (mm) | 180 |
| Packaging speed (times/min) | 7~8 |
| Capacity (box/hour) 1 out 1 | ≈480 |
| Power supply (v/hz) | 220/50 |
| Total power (kw) | 1 |
| Equipment weight (kg) | 21.5 |
| Equipment size L * W * H (mm) | 620*330*310 |
| Gross weight of packaging (kg) | 35 |
| Packaging outer box size L * W * H (mm) |
685*395*310 |

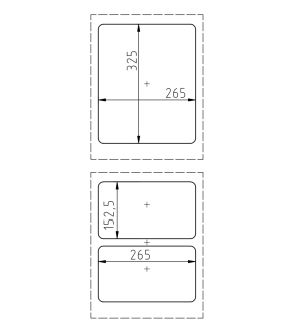

| The maximum size of the tray (mm) Output 1 | 325*265*130(*1) |
Main accessories
| Shell | 304 stainless steel |
| Mold section | 6061 aluminum (anodized) |
| Hot plate | Teflon |
| Temperature Controller | Omron/Taisong |
| power switch | Meiyu |
| Labor-saving handle | Reinforced Nylon |
| Solid state relay | Clion |
