Customizable Manual Edge Cutting Sealer Machine FR160A with Adjustable Temperature Control, Ergonomic Handle, and Stainless Steel Construction for Food Trays
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Model Number | FR160A |
| Minimum Order Quantity | 10 pcs |
| Price | 286$ |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and avoid corrosion. |
| Delivery Time | 15 working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 10 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Stainless Steel Sealer Packing Machine Compact Design Manual Labor-saving Food Heat Sealer Machine | Packaing Material | Rolling Film |
|---|---|---|---|
| Type | Manual | Warranty Of Core Parts | 1 Year |
| Highlight | Adjustable Temperature Control Food Tray Sealer,Ergonomic Handle Manual Heat Sealer,Stainless Steel Construction Manual Edge Cutting Sealer Machine |
||
Product Description

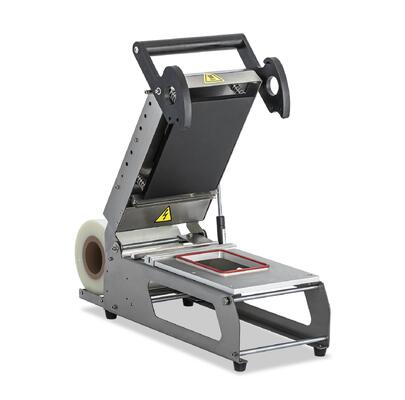

FR160A Manual Edge Cutting Sealer Machine
Customizable manual edge cutting sealer with adjustable temperature control and ergonomic handle, designed specifically for food tray packaging applications.
Product Overview
The FR160A sealing packaging machine is designed for fresh food packaging without gas filling, making it ideal for instant foods and frozen products in retail stores and supermarkets. This desktop unit features compact dimensions and user-friendly operation suitable for all age groups.
Key Features
- Constructed with stainless steel body and 6061 aluminum mold for safety and hygiene
- Compact desktop design with minimal space requirements
- Customizable with dedicated LOGO color film for brand promotion
- Ergonomic labor-saving handle for comfortable operation
- Adjustable temperature control for precise sealing
Technical Specifications
| Equipment Model | FR160A |
| Style | Edge-cut |
| Maximum Roll Film Width | 260 mm |
| Maximum Roll Film Diameter | 180 mm |
| Packaging Speed | 7-8 times/min |
| Capacity (1 out 1) | ≈480 boxes/hour |
| Power Supply | 220V/50Hz |
| Total Power | 0.6 kW |
| Equipment Weight | 10 kg |
| Equipment Dimensions (L*W*H) | 675*285*260 mm |
| Packaging Outer Box Dimensions | 610*360*300 mm |

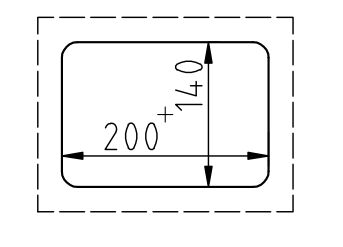

| Maximum Tray Size (Output 1) | 200*140*140 mm |
Main Components
| Shell | Stainless Steel |
| Mold Section | 6061 Aluminum |
| Hot Plate | Teflon |
| Temperature Controller | Omron/Taisong |
| Power Switch | Meiyu |
| Labor-saving Handle | Reinforced Nylon |
| Solid State Relay | Clion |
Product Gallery
Certifications & Quality

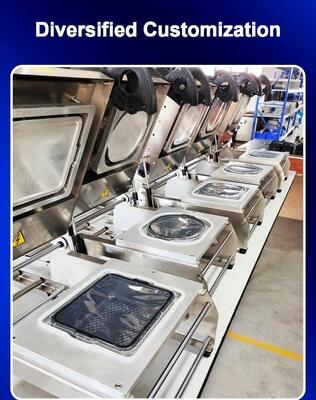

Customization & Support
Xian Yang Chic Intelligent Equipment Co., Ltd. offers customized sealing packaging solutions tailored to specific food types and production requirements, ensuring optimal performance and cost-effectiveness.
