JY 100 Blister Packaging Machine Blister Cartoning 0.5 Mpa
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20 pcs /month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Blister Box Automatic Cartoning Packaging Machine | Driven Type | Mechanical |
|---|---|---|---|
| Automatic Grade | Full Automatic | Voltage | 380v 50hz 3 Phase |
| Capacity | 40-120 Cartons/min | Dimension | 3200*1350*1600mm(L*W*H) |
| Highlight | JY-100 blister packaging machine,0.5 Mpa blister packaging machine,blister cartoning machine |
||
Product Description

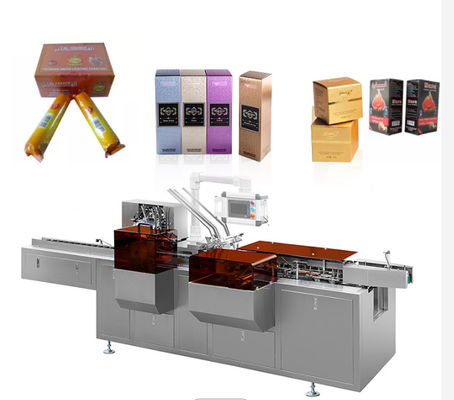

JY 100 Pharmaceuticals Cartoning Blister Packaging Machine For Food Tray Automatic Cartoning Machine
Blister Box Automatic Cartoning Packaging Machine
Application:
Automatica Cartoning Machine can pack products into carton box and seal the box automatically.
It's suitable for food,pharmaceuticals,commodity,cosmetic,sachet,food tray,electrical component.It also can connect with other machine,like filling machine,shrink packing machine to be a whole automatic packing line.
Specifications :
| Model | JY-100 |
| Air Compression | 0.5 Mpa, Rate of flaw≥0.6m³/min |
| Capacity | 50-90 pcs/min (The speed depends on type of products)
25-45bags/min (For zipper bag)
|
| Package Accuracy | Error≤±1 |
| Total Power | 1.5KW (220V/380V,3PH,50HZ) |
| Demension | 3200 * 1350 * 1600 (L * W * H) |
| Weight | 1200KGS |
| Gas Consumption | ≥ 20m³/h supply by user |
| Application Material | Paper box: 250-350 g/m² (up to box size)
Max size: 200 * 80 * 60mm (L*W*H)
Min size: 55 * 35 * 14mm (L*W*H)
Instruction paper: 55-65 g/m²
Max size: 240 * 170mm (L*W) Min size: 110 * 90mm (L*W) |
Feature:
The sealing system has the functions of opening box, loading material, folding, inserting box, sealing box and so on. The fuselage is made of steel structure, the outer surface is painted with baking paint, and the parts touching the color box are all made of high-quality stainless steel and aluminum. The surface is polished, which has a beautiful appearance and does not pollute the environment.
machine accessory list:
| No. | Name | Brand | Made in |
| 1 | The main body | Stainless steel | China |
| 2 | electric elements | Schneider / OMRON | french/japan |
| 3 | pneumatic | AIRTAC | Joint venture |
| 4 | Bearing | Luoyang | China |
| 5 | servo motor | Panasonic | JAPAN |
| 6 | PLC | Siemens? | German |
| 7 | Touch screen | Siemens? | German |
| 8 | Driver | Starlight transmission | China |
Samples:
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag/carton type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on alibaba we have trade assurance.
2. Arrange 30% deposit to our factory
3. Factory arrange production
4.Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
