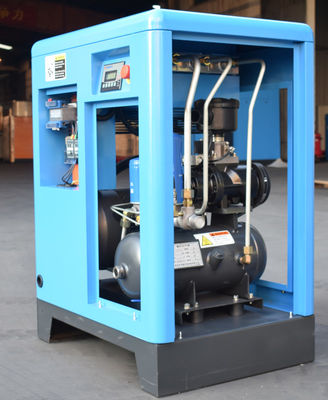

8bar Helical Screw Compressor 7.5 Kw 10L 214KGS Belt Driven Type
Product Details
| Name | 7.5kw 10hp CHIC-10A 8bar 3 Phase Air Compressor Belt Used Screw Air Compressor | Air Delivery | 1.1m³/min |
|---|---|---|---|
| Electricity | Three Phase 220/60 Or 440/60 (V//Hz) | Pressure | 8Bar |
| Noise Level | 62±2dB | Power | 10HP/7.5KW |
| N.weigh | 214KGS | ||
| Highlight | 8bar helical screw compressor,10L helical screw compressor,7.5 kw screw compressor |
||
Product Description
Stable and safe working . trouble -free pressure gauge Besure of enough internal pressure, and the power is on while using
100% pure copper wire motor stable working , powerful perormance and high efficiency
Observing the oil consuming during usage so as to know if the oil excessive
Made of pure copper to keep its shape . no leakage and long life -span
Technical parameters
| Model | CHIC-10 | ||
| Power | 10HP/7.5KW | ||
| FAD: (M3/MIN) | 1.1 | ||
| Pressure | 8bar | ||
| Cooling | Air-cooling | ||
| Lubricant | 10L | ||
| Noise level | 62±2dB | ||
| Drive method | Belt driven type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 220/60 or 440/60 (V//Hz) | ||
| Starting method | straight | ||
| Air outlet: Pipe diameter(inch) | R 3/4" | ||
| Oil content of air | <2ppm | ||
| Dimension | 800MM*600MM*1040MM | ||
| Net weight | 214KGS | ||
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
1.Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
2. What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
3. How long does delivery take?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
4. Is OEM acceptable?
A:Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
