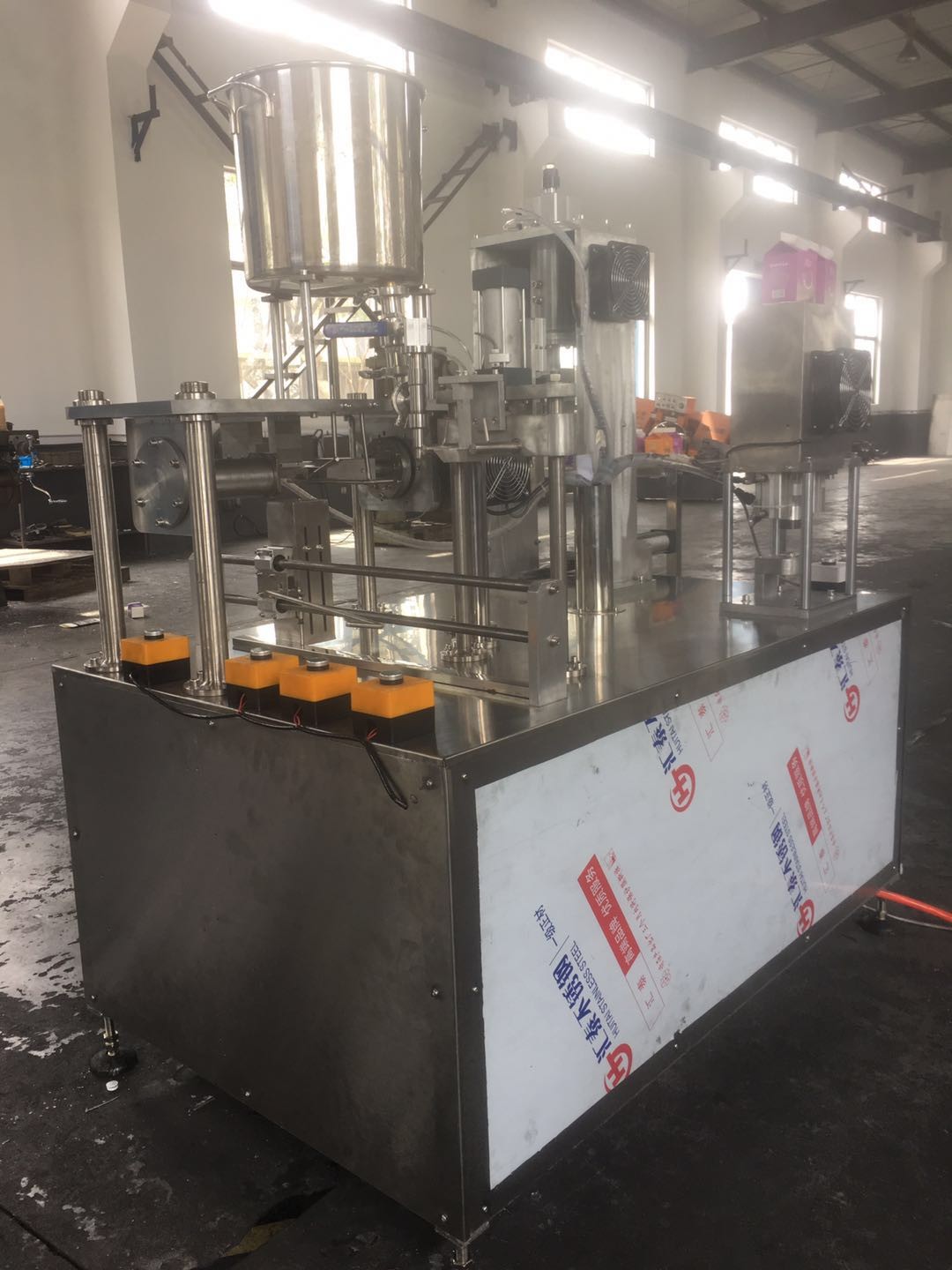

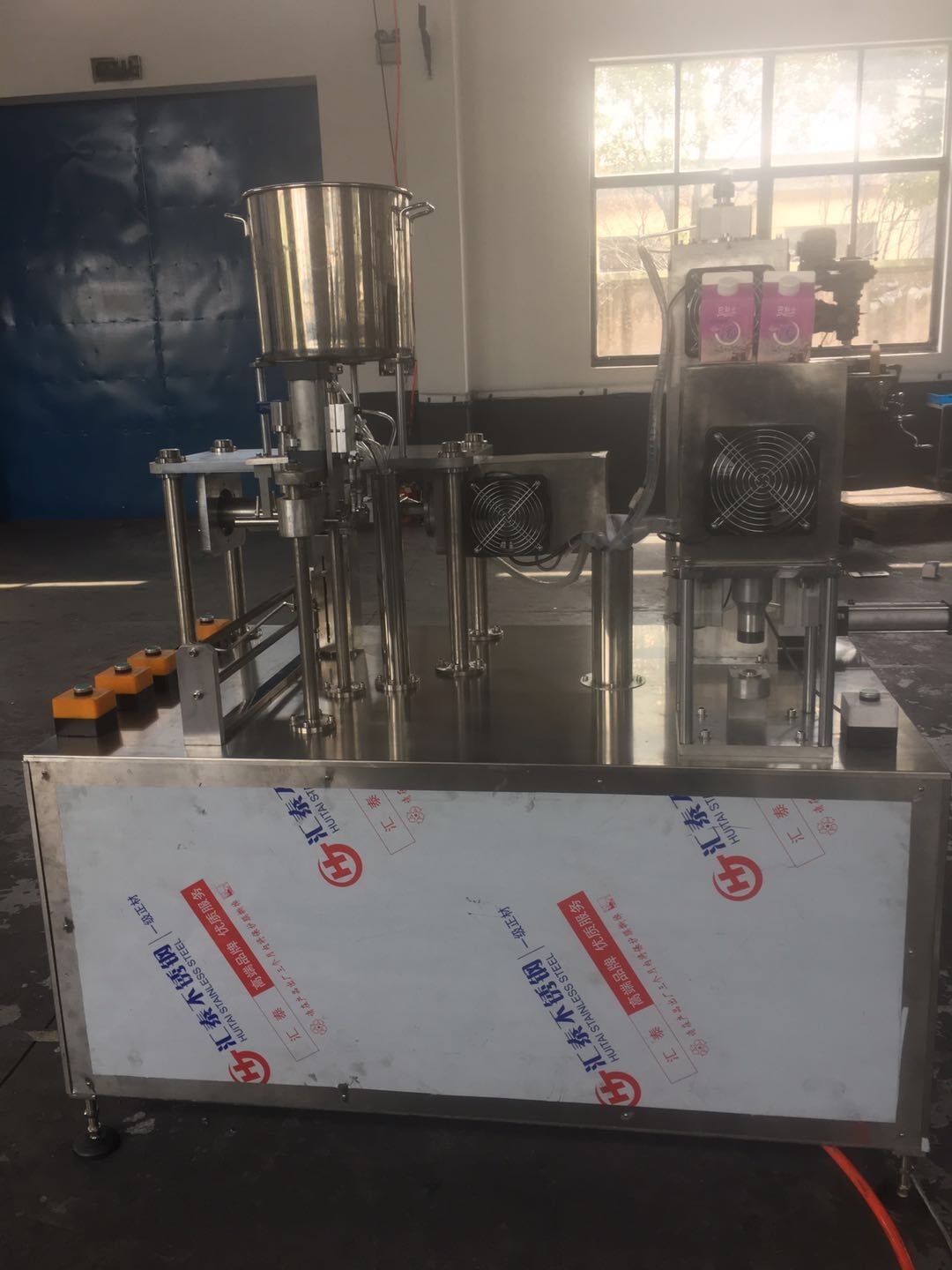

Semi Automatic Gable Top Aseptic Carton Filling Machine Juice Packing 1L Carton

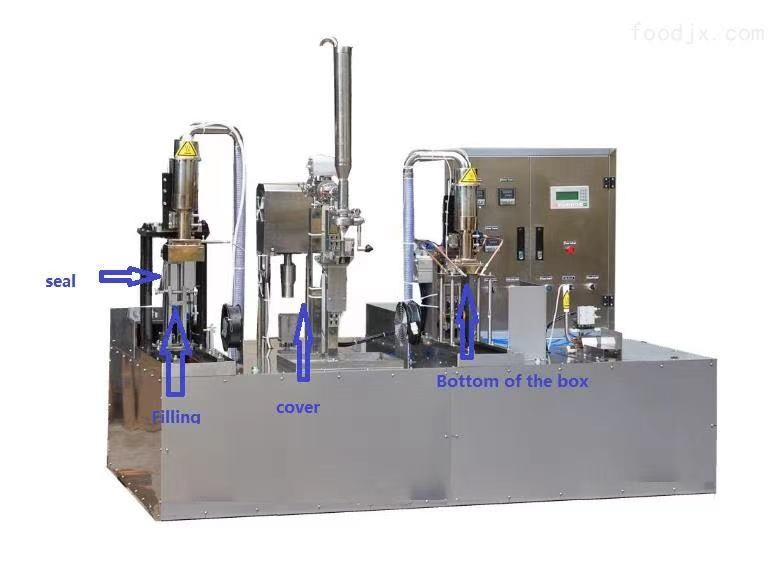

It is made up of four parts: box making, caps application, filling and sealing tops , printing date.

Equipment process flow:

1. make boxes; buy carton pieces, feed cartons manually , ultrasonic welding, press seal molding, manual take out , opened carton.

2. caps application: opened carton, (manual put cap), ultrasonic welding, opened carton with cap.

3. filling: opening carton, (manual put caps) -filling product, ultrasonic welding, sealing, conveyor, finished product.

4. date printing: there is a date printer beside the sealing part, just feed the finished carton, it can print date automatic.

The operation process of filling machine is controlled by a handle, and the other is automatic control of electrical appliances, which is completed by 3-4 people.

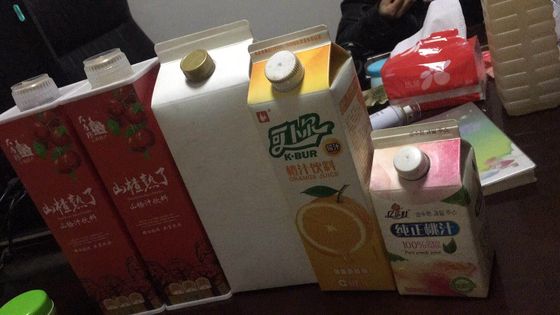

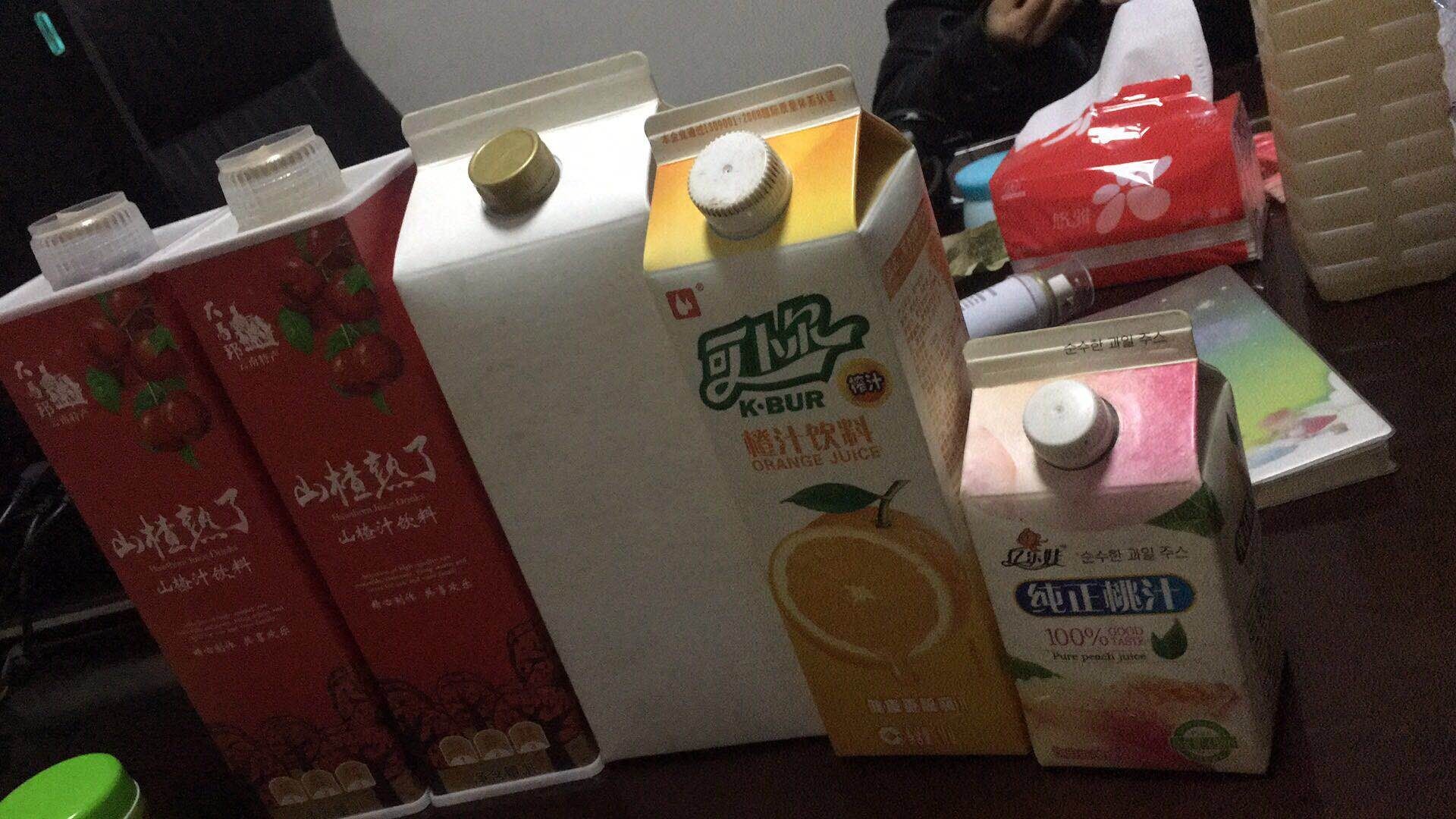

Production varieties: fruit juice, rice milk drinks, yogurt drinks, grain drinks, tea drinks, fruit vinegar juice drinks, fresh milk, yogurt and other products filling.

Machine specifications:

1.(DH-400)accessory list

-2(DH-400)spare parts list

Packaging:

Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.

Installation:

1- We provide videos and instruction manual to show the process of installation.

2- We provide training for installation for free in our factory.

3- We can send technician to buyer's factory to install the machine and provide training service,but customer affords the engineer’s visa fee, double-flight fee, hotel fee and 100USD per day salary.

After Sales Service:

1- One year quality warranty and free lifetime technique support.

2- Free spare parts would be supplied if machine broken within warranty period.

3- After the warranty period, the spare parts for replacement are offered based on certain charge.

FAQ:

Q1: What’s the MOQ of the machines?

The MOQ is 1 set.

Q2: What’s the carton material does the machine use?

3-layer or 5-layer 7-layer laminated cartons.

Q3: Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.

Q4: Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.

Q5: Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating.

Q6: What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.

Q7: Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.

Q8: What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
