1750mm Plastic Glass Packing Machine 100g Ketchup Water Cup
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 35 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Liner Type Cup Butter Jam Ketchup Honey Chocolate Paste Blister Packing Machine, Fill Seal Machine | Driven Type | Pneumatic |
|---|---|---|---|
| Filling Head | 6 | Accuracy | Less Than 1%-2% |
| Filling Arrange | 5-100g | Dimension | L 3500*W 1100*H 1750 Mm |
| Warranty | 1 Year | Style | Full Automatic |
| Highlight | 100g Ketchup plastic glass packing machine,1750mm plastic glass packing machine,1750mm water cup packing machine |
||
Product Description
Liner Type 6 Lane Tea Capsule Cup Filling Sealing Packaging Machine
Descrption :

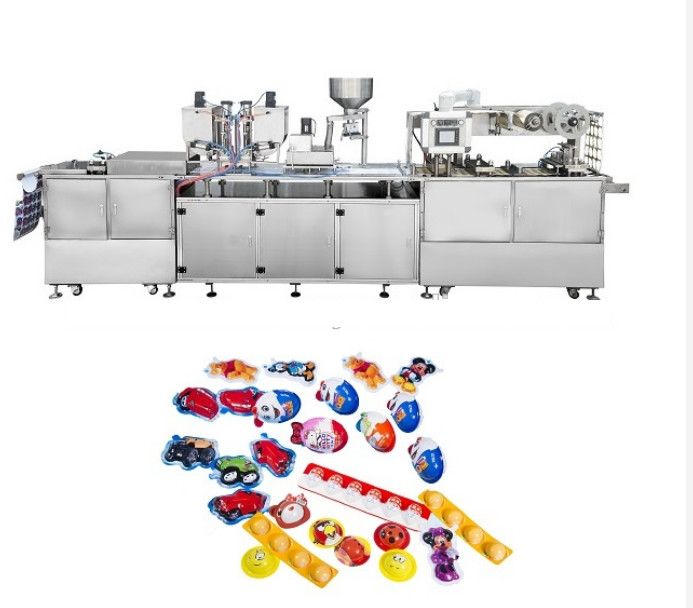

Cup butter jam ketchup honey chocolate paste blister packing machine, thermoform fill seal machine is exclusively used in colorful plastic sheet forming, filling, sealing and cutting, it is suitable for the packaging of chocolate paste, margarine, candy, biscuit, toy and etc., The packed products (like cartoon animal, cartoon car, kinder joy egg..) with excellent 3D appearance and looks high class, is the best choice for the high class confectionary, dally use chemical, toy manufacturing enterprise.
This machine adopts with the PLC controlling system, frequency control, double servo motor sending, clear fault display, easy mould changing and simple operation.
Machine working flows: Machine is full automatic.
Plastic Sheet Accurate Forming → Filling → Sealing → Cutting → End-products Discharging
Cup butter jam ketchup honey chocolate paste blister packing machine, thermoform fill seal machine is equiped with import components made in Germany, France, Japan, Korea etc., ensure machine run stably and reliable quality.
Plastic sheet materials: PVC, PS, PET.
Technical Paremeter
| Model | QGF-ZC |
| Description | QGF-ZC Colorful Plastic Sheet Forming Filling Sealing Machine |
| Power: | 380V/3 PHASE/50Hz |
| Cutting frequency | about 20times/min |
| Motor power: | 1.5Kw |
| Air pressure: | 0.4-0.6Mpa |
| Air consumption: | About 0.75³/min |
| Mould cooling: | tap water or recycling water |
| Max shaping areas depth: | 160x250x24mm |
| Applied forming materials: | PVC, PET or PS |
| Applied plastic sheet roll max diameter: | 380mm |
| Applied plastic sheet thickness: | 0.2-0.5mm |
| Filling type: | Piston rationed cup filling |
| Filling error: | ≤±0.5g |
| Dimension (L x W x H): | 5300mm x 750mm x 1750mm |
Features:
How this machine make products?
Plastic sheet heating---Cups/boxes/characters Forming---Automatic Filling---Automatic Sealing---Automatic Cutting---En-products
Welcome to enquireCup butter jam ketchup honey chocolate paste blister packing machine, thermoform fill seal machine, thank you!
Machine details:
1. Plastic Sheet Sending Device
2. Plastic Sheet Heating and Forming Device
3. Liquid or Paste Filling Device
4. Granular(like biscuit or rice) Filling Device
5. Heat Sealing Device
6. Automatic Cutting Device
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.
Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
