15000 Strip/H Automatic Cartoning Machine Medicine Blister Packing Machine
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Model Number | DPB320 |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20 pcs /month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Medicine Blister Packing Machine | Driven Type | Mechanical |
|---|---|---|---|
| Automatic Grade | Full Automatic | Voltage | 380v 50hz 3 Phase |
| Capacity | 15000 Strip/h | Dimension | 2910*820*1600 Mm(L*W*H) |
| Highlight | 15000 Strip/H Automatic Cartoning Machine,Medicine Blister Automatic Cartoning Machine,15000 Strip/H Medicine Blister Packing Machine |
||
Product Description
DPB320 Medicine Blister Packing Machine
Application:
Applications: Our machine is a latest high-precision medicine packing machine in current pharmacy industry. it is widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry. it is also widely used in electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Specifications :
|
Model
|
DPB-320
|
|
Cutting Frequency(times/min)
|
20-50 times/min
|
|
Capacity (strip/h)
|
15000 strip/h
(standard blister sheet 80*57) |
|
Max shaping areas and depth(mm)
|
320*160*26mm
|
|
Stroke(mm)
|
20-120(can be manufactured as user's requirements)
|
|
Standard Sheet(mm)
|
80*57, 80*35, 95*65, 105*42, 105*55mm(can be manufactured as user's requirements)
|
|
Air Pressure(kw)
|
0.5-0.7 Mpa 0.2m3/min
|
|
Total power
|
380V/220V 50Hz 8kw
|
|
Pressure(kw)
|
1.5 kw
|
|
PVC hard pieces(mm)
|
0.15-0.5*320
|
|
PTP Aluminum Foil(mm)
|
0.02-0.035*250
|
|
Dialysis Paper(mm)
|
50-100g*320
|
|
Mould Cooling
|
tap water or recycled water
|
|
Overall Dimensions(mm)
|
2910*820*1600mm
|
|
weight
|
2200kg
|

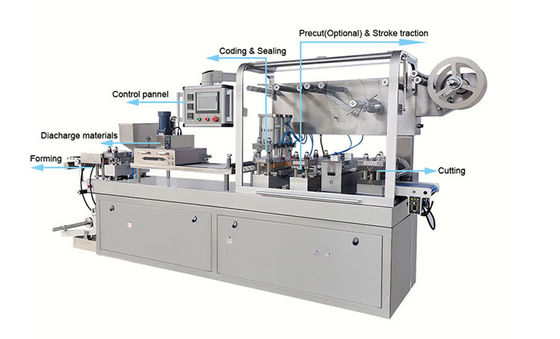

Working chart:
Feature:
1. The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.
2. It can be equipped with cursor device etc. as customer's requirement.
3. Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.

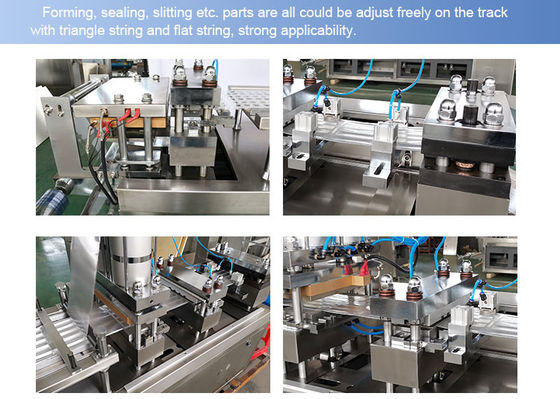

4. Stroke can be adjust freely, widely used, ease of operation, stable running.
Machine accessory list:
| No. | Name | Brand | Made in |
| 1 | The main body | Stainless steel | China |
| 2 | electric elements | Schneider / OMRON | french/japan |
| 3 | pneumatic | AIRTAC | Joint venture |
| 4 | Bearing | Luoyang | China |
| 5 | servo motor | Panasonic | JAPAN |
| 6 | PLC | Siemens? | German |
| 7 | Touch screen | Siemens? | German |
| 8 | Driver | Starlight transmission | China |

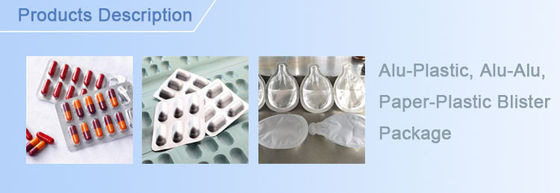

Samples:
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag/carton type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on we have trade assurance.
2. Arrange 30% deposit to our factory
3. Factory arrange production
4.Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
