High Speed Aseptic Carton Filling Machine 304 Stainless Steel 3000 Cartons/hour For 125ml,200ml,250ml,330ml,

Place of Origin China
Brand Name CHIC
Certification ISO CE
Model Number CHIC-PK
Minimum Order Quantity 1 pcs
Packaging Details laminated paper cartons
Delivery Time 50-60 days
Supply Ability Milk, juice, wine, water, food and degergent sauce,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Filling Capacity 1-330ml Product Name Aseptic Carton Filling Machine
Air Consumption 3m³/min Filling Speed 3000 Cartons/hour
Material 304 Stainless Steel Power Supply 380V/50Hz
Air Pressure 0.6-0.8Mpa Carton Shape Brick Type Cartons With Or Whithout Straw
Leave a Message
Product Description

Product Description:

1.1 The roll of packaging material is placed at the back of the machine at the unloading roll.

1.2 The packaging material that is pulled by the motor enters the sealing strip mechanism through the paper roller, and the sealing strip is heated by the sealing strip heating block first, and is attached to one side of the inner surface of the packaging material, so that when the packaging material is rolled into a cylindrical shape, it can be pasted with the other side of its inner surface, and the tightness of the cross-section of the interface packaging material is ensured.

1.3 The packaging material with the sealing strip is towed through a low-concentration hydrogen peroxide bath, and the inner surface is sterilized and dried with sterile hot air.

1.4 The sterilized packaging material is pulled to the aseptic packaging space (clean room), and the packaging material is rolled into a cylindrical shape by the packaging forming tube and the forming parts.

1.5 The packaging material rolled into a cylinder is sealed into a sealed paper tube by a vertical seal, and the packaging contents enter the sealed paper tube from the packaging tube.

1.6 The preforming device carries out transverse sealing and preforming, and then the preformed box is cut off by the undercutting horizontal sealing knife device and enters the terminal welding angle shaping mechanism. The finished product is conveyed by the conveyor belt into the packaging workshop.

1.7, the machine for intermittent traction work. The coordination of each action relies on each signal element to transmit the captured signal to the PLC system, and the PLC system controls each moving part.

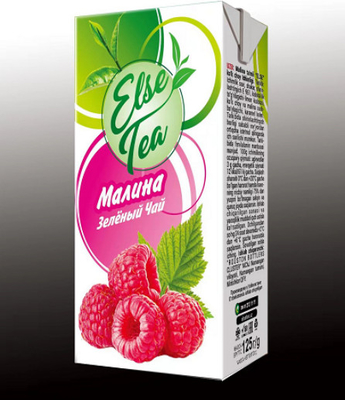

High Speed Aseptic Carton Filling Machine 304 Stainless Steel 3000 Cartons/hour For 125ml,200ml,250ml,330ml, 0

Specifications:

Standard capacity 125ml, 250ml, 330ml /box
Specifications of ordinary brick boxes 63*41*106.3mm
Slim brick box specifications 54*38*138mm
Diamond type 101*41*44mm (200ml)
Diamond type 126*41*44mm (250ml)
Diamond type 60*59*125mm (330ml)
Packaging materials Cardboard/Polyethylene/Foil Composites (7 layers)
Packing speed 3000--3600 box/h
Operators 2 people
Maximum external dimensions 5000*1810*3600mm
Total weight 1500kg
Total power 12KW (in use 8KW)
Compressed air consumption 3m³/min
Compressed air pressure 0.65-0.8Mpa
cooling water Use recycled clean soft or purified water
Hydrogen peroxide consumption 0.2L/8h
quality 35% concentration, no wetting agent, purity in line with CB6684-86, sodium ≤ 5ppm, calcium ≤ 1ppm, sulfur ≤ 2ppm, phosphorus ≤ 10ppm, other elements ≤ 1ppm, total return water residue ≤ 50mg/1L

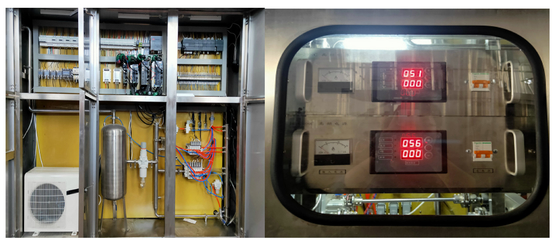

High Speed Aseptic Carton Filling Machine 304 Stainless Steel 3000 Cartons/hour For 125ml,200ml,250ml,330ml, 1

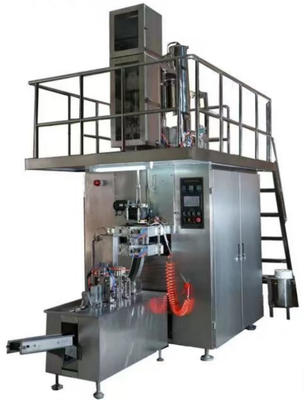

High Speed Aseptic Carton Filling Machine 304 Stainless Steel 3000 Cartons/hour For 125ml,200ml,250ml,330ml, 2

High Speed Aseptic Carton Filling Machine 304 Stainless Steel 3000 Cartons/hour For 125ml,200ml,250ml,330ml, 3

Packing and Shipping:

Product Packaging:

  • The Aseptic Carton Filling Machine will be securely packed in a wooden crate to prevent any damage during transportation.
  • All components and accessories of the machine will be properly organized inside the crate.
  • The crate will be sealed and labeled with the product name, model number, and other necessary information.

Shipping:

  • The machine will be shipped via a reputable shipping company to ensure timely and safe delivery.
  • The shipping method will depend on the customer's location and requirements.
  • The customer will be provided with a tracking number to monitor the status of their order.
  • The shipping cost will be calculated based on the destination and weight of the crate.


FAQ:

Q: What is the brand name of the aseptic carton filling machine?

A: The brand name is CHIC.

Q: What is the model number of the aseptic carton filling machine?

A: The model number is CHIC-PK.

Q: Where is the aseptic carton filling machine manufactured?

A: The machine is manufactured in China.

Q: What certifications does the aseptic carton filling machine have?

A: The machine has ISO and CE certifications.

Q: What is the minimum order quantity for the aseptic carton filling machine?

A: The minimum order quantity is 1 piece.

Q: What are the packaging details for the aseptic carton filling machine?

A: The machine is packaged in laminated paper cartons.

Q: What is the delivery time for the aseptic carton filling machine?

A: The delivery time is 50-60 days.

Q: What is the supply ability of the aseptic carton filling machine?

A: The machine can be used to fill milk, juice, wine, water, food and detergent sauce.
