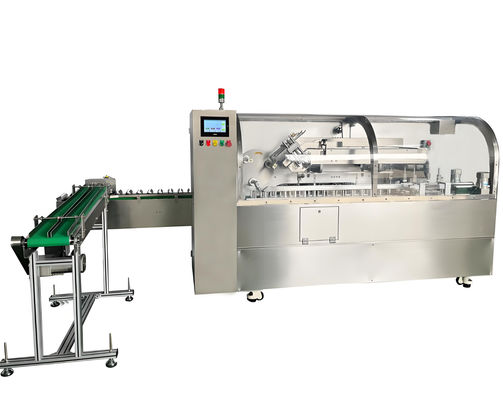

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers

  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
  • Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers
Place of Origin China
Brand Name CHIC
Certification CE ISO
Model Number ZH-180
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 30 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 pcs /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Full-automatic Cartoning Machine Condition New And Customized As Your Needs
Power 380V/50Hz/1.5kw Carton Size Range L（80-200）*W（25-90）*H（14-80）(mm)
Carton Paper Required 250-350g/m2 Stable Speed 120-140cartons/min
Compressed Air Consumption 5-8L/min,0.6Mpa Machine Size L3300*W1200*H1750 (mm)
Instruction Paper Size L(30-230)*W(30-230) Instruction Paper Material 50-65g/m2
Leave a Message
Product Description

Full-automatic cartoning machine for small bottles/aluminum-plastic boards/cosmetic containers etc...



ZH-180 Full-automatic cartoning machine 120-140cartons/hour



Descriptions:

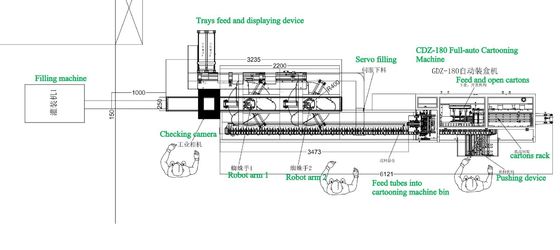

The ZH-180 high speed automatic cartoning machine and special designed tubes feeders to transport and feed trays and conveyor to connect your forward tube filling machine , to pack the tubes one by one into cartons and then insert the two end covers and glue seal them to coding date using the ink-jet date printer, then output the finished cartons .or to place trays firstly and start the robot arms to place three tubes into each tray and then fill into each cartons and insert the two covers and glue seal to coding on cartons and output.







Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 0Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 1



ZH-180 Full-automatic cartoning machine specifications:



No. Name Unit Number or illustration P.s.
1 Power kw 1.5
2 Voltage v 380V/50HZ
3 Stable speed box/min 120-140 box/min
4 Box size L*W*H  mm (80-120)*(25-90)*(14-80)
5 Box paper g/m2 250-350
6 Instruction Size L*W (30-230)*(30-230)
7 Instruction paper g/m2 50-65
8 Air consumption L/min 5～8
9 Compressed air Mpa 0.6
10 Weight kg 2500
11 Noise ≤dB 75
12 Dimension L*W*H mm 3300*1200*1750 Partial size without wire



Machine features:

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 2

1. Automated Packaging Operations

2. Integrated Documentation Handling

3. Product Identification Solutions

4. Intelligent Monitoring System

5. Control Architecture

6. Production Intelligence

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 0Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 1Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 5Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 6Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 7Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 8Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers 9

FAQ:

Q1: What’s the MOQ of the machines?

The MOQ is 1 set.



Q2: What’s the carton material does the machine use?

3-layer or 5-layer corrugated cartons.



Q3: Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.



Q4: Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.



Q5: Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating.



Q6:What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.



Q7: Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.



Q8: What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
