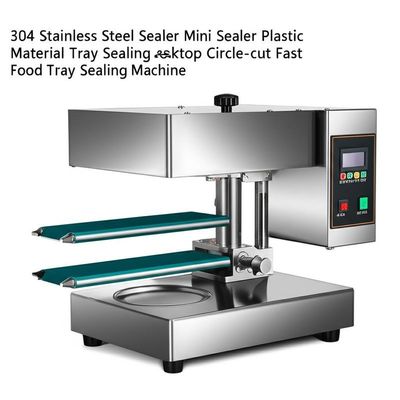

304 Stainless Steel Sealer Mini Sealer Plastic Material Tray Sealing Machine Desktop Circle-cut Fast Food Tray Sealing Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Model Number | DQ-2 |
| Document | DQ-2-4-6 Circle Cut.pdf |
| Minimum Order Quantity | 1 pcs |
| Price | 354$ |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 10 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 304 Stainless Steel Sealer Packing Machine Compact Design Manual Labor-saving Food Heat Sealer Machine | Packaing Material | Rolling Film |
|---|---|---|---|
| Type | Manual | Warranty Of Core Parts | 1 Year |
| Highlight | 304 stainless steel tray sealer,mini plastic tray sealing machine,desktop circle-cut fast food sealer |
||
Product Description
Electrically Heated Manual Series Labor-saving Tray Sealing Machine
Compact tabletop sealing machine with adjustable temperature control, designed for packaging cooked foods, fruits, vegetables, and meats in commercial settings. Features stainless steel construction and manual operation with ergonomic handle.
Product Overview

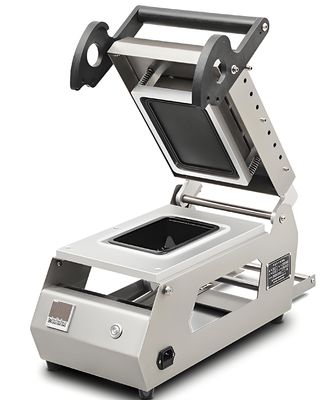

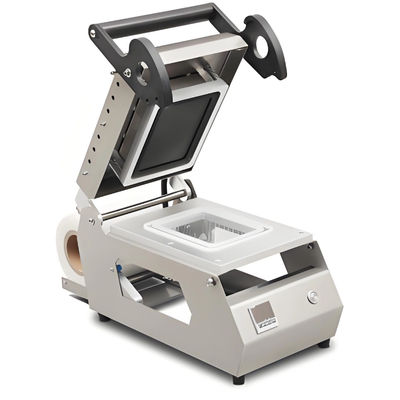

The DQ-2 hand sealing and packaging machine is designed for factory packaging of ready-to-use foods in stores, supermarkets, and quick-frozen foods. This compact tabletop machine features stainless steel construction and manual operation with hand press for tray feeding, sealing, and cutting.
Technical Specifications
| Specification | Detail |
|---|---|

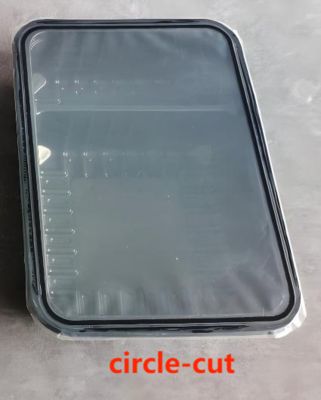

| Style | Circle-cut |
| Equipment model | DQ-2 |
| Maximum width of rolled film (mm) | 180 |
| Maximum diameter of rolled film (mm) | 180 |
| Packaging speed (times/min) | 7～8 |
| Capacity (box/hour) 1 out 1 | ≈480 |
| Power supply (v/hz) | 220/50 |
| Total power (kw) | 0.6 |
| Equipment weight (kg) | 13.5 |
| Equipment size L * W * H (mm) | 530*310*240 |

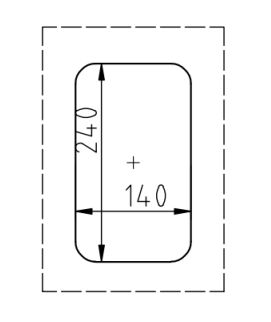

| Maximum tray size (mm) Output 1 | 250*150*130 |
Main Components
| Component | Material/Brand |
|---|---|
| Shell | 304 stainless steel |
| Mold section | 6061 aluminum |
| Hot plate | Teflon |

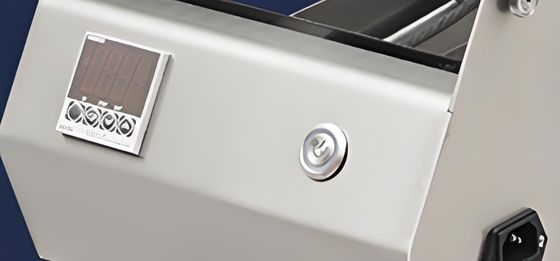

| Knob temperature control | Omron/Taisong |
| Power switch | Meiyu |

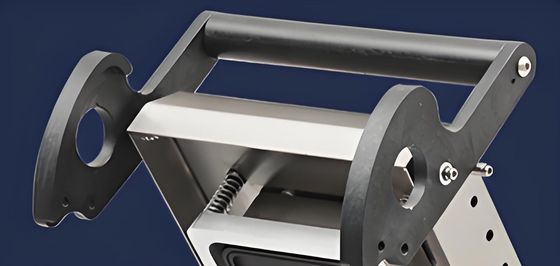

| Labor-saving handle | Reinforced Nylon |
| Solid state relay | Clion |
Key Features & Advantages
- Custom molds available for popular tray sizes in your market
- Constructed with stainless steel 304 and anti-corrosive aluminum
- Adjustable sealing temperature with scale knob
- Ergonomic labor-saving handle design for easy operation
- Manual film feeding with profile film cutting
- CE certified for safety and hygiene
- Includes training video and responsive online after-sales service
- Customizable voltage/plug types available

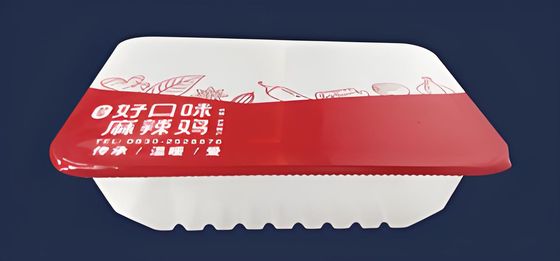

- Package material options: PP/PET/Aluminum foil trays + film available in custom sizes and prints
Frequently Asked Questions
How to select the right packing machine for my product?
Provide details about your product and packing requirements including: product type, bag/pouch dimensions, weight per pack, and specific machine requirements.
Is technical support available overseas?
Yes, though travel expenses are customer's responsibility. We provide detailed installation videos and remote assistance.
How is machine quality verified before shipment?
We provide photos/videos of the machine for inspection. Customers may also arrange third-party quality checks in China.
What payment and delivery terms are available?
Standard process: 30% deposit, production, testing, inspection, balance payment before shipment. We offer Trade Assurance for transaction security.
Do you provide delivery services?
Yes, we can arrange shipping to your destination with cost estimates provided in advance.
