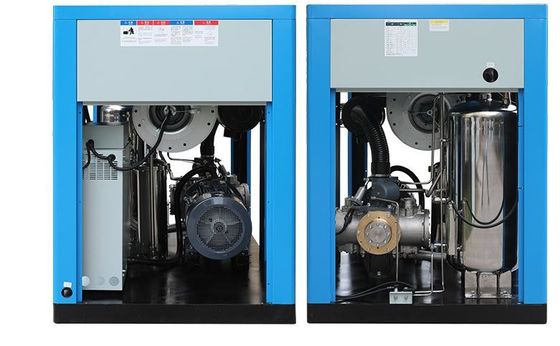

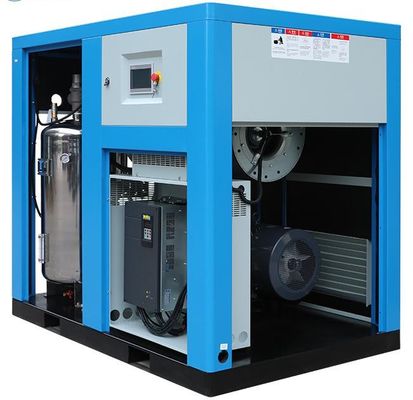

800mm Oil Free Scroll Compressor Small Rotary Air Compressor 8 BAR DN50 Pipe
Product Details
| Highlight | 800MM small rotary air compressor,8BAR oil free scroll compressor,800MM oil free scroll compressor |
||
|---|---|---|---|
Product Description
100% oil free screw air compressors/Portable Configuration and New Condition oil free screwl air compressor
| Model | CHIC-20A | ||
| Power | 20HP/15KW | ||
| FAD: (M3/MIN) | 1.4-1.6m³/min | ||
| Pressure | 8 BAR | ||
| Cooling | Air-cooling | ||
| Noise level | 65±2dB | ||
| Discharge temperature | Environment temp+15℃ | ||
| Environment temp | ≤46℃ | ||
| Electricity | Three phase 380/50(V//Hz) | ||
| Rotate speed | 2870rpm/min | ||
| Starting method | Δ | ||
| Air outlet: Pipe diameter(inch) | DN50 | ||
| delivery | 15-20 days | ||
| Oil content of air | <2ppm | ||
| Dimension | 800MM*900MM*1750MM | ||
| Net weight | 450KGS | ||
