420mm Detergent Vertical Powder Packing Machine Filling 3KW Auger Filler
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Minimum Order Quantity | 1 pcs |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 25 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Detergent Powder Vertical Type Vffs Packing Machine Packaging Machine With Auger Filler | Packaing Material | Rolling Film, Laminated Film And Heat Sealing Laminated Paper Roll |
|---|---|---|---|
| Driven Type | Electric And Pneumatic | Type | Multi-function Packaging Machine |
| Condition | New | Warranty Of Core Parts | 1 Year |
| Highlight | 420mm Detergent vertical powder packing machine,3KW vertical powder packing machine,3KW vertical filling machine |
||
Product Description

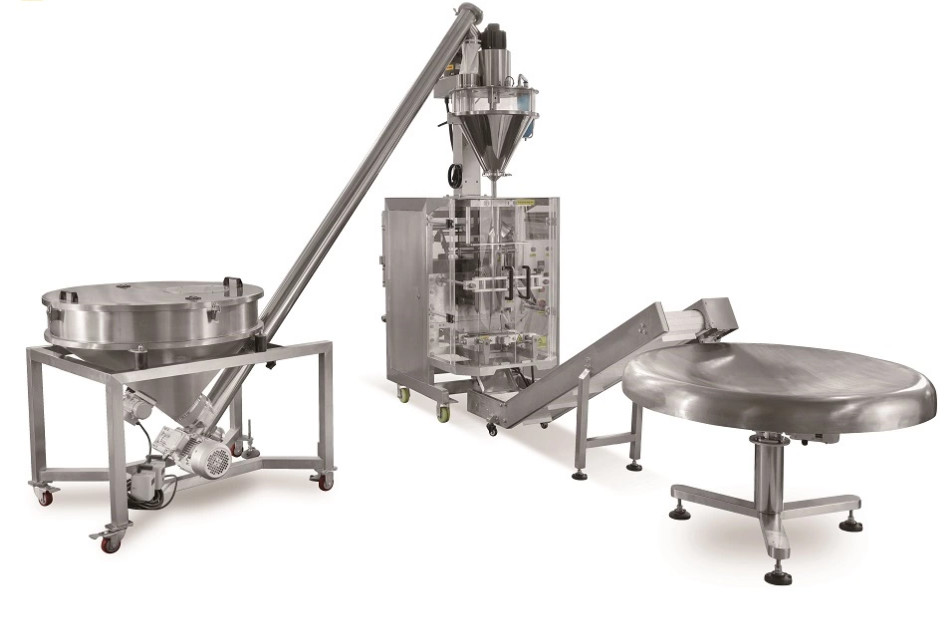

Detergent Powder Vertical Type Vffs Packing Machine Packaging Machine With Auger Filler
Application:
This machine is mainly used for packing powder products: such as spice powder, coffee powder, milk powder, detergent / washing powder, curry powder, egg powder, protein powder, stick powder, baby powder, chilli powder, soap powder, masala powder, and mehndi powder etc.
Technical information:
1. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
2. It can stock ten dispose, simple to change variety.
3. Sever motor drawing film, position accurately.
4. Temperature independent control system ,precision get to±1℃.
5. Horizontal, vertical temperature control, suitable for several of mix film, PE film packing material.
6. Packing type diversification, pillow sealing, standing type, punching etc.
7. Bag–making , sealing, packing, print date in one operation.
Main machine Configuration:
Filling system of PowerA film reel auto-alignment system
One set of central sealing unit
One set of horizontal sealing unit
An independent bag former
One set of servo film pulling system
One set of cutting system
An automatic material-level control system
PLC tracking control system touch-control operation system One set of Thermal Printer A product outlet system An operation manual in English
| Model | ZQ-420F | ZQ-520F | ZQ-620F |
| Max. Width of Film | 420mm | 520mm | 620mm |
| Bag Width | 60~200mm | 100~250mm | 100~300mm |
| Bag Length | 80~300mm | 80~350mm | 80~420mm |
| Packing Speed | 5~60bags/min | 5~60bags/min | 5~55bags/min |
| Fill Roll Diameter | Max 320mm | Max 320mm | Max 320mm |
| Film Material | OPP/CPP OPP/CE PET/PE NILO/PE PE | OPP/CPP OPP/CE PET/PE NILO/PE PE | OPP/CPP OPP/CE PET/PE NILO/PE PE |
| Fill Thickness | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm |
| Power | 3KW | 4KW | 5KW |
| Voltage | 220V 50/60HZ | 220V 50/60HZ | 220V 50/60HZ |
| Gas Consumption | 0.6m³/min | 0.6m³/min | 0.6m³/min |
| Dimension | (L)1457×(W)1130×(H)1350mm | (L)1630×(W)1230×(H)1470mm | (L)1700×(W)1290×(H)1760mm |
NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use Alibaba Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
