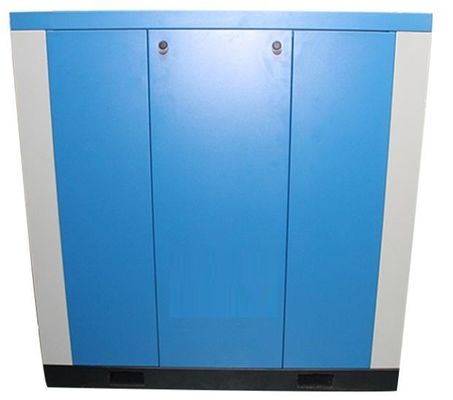

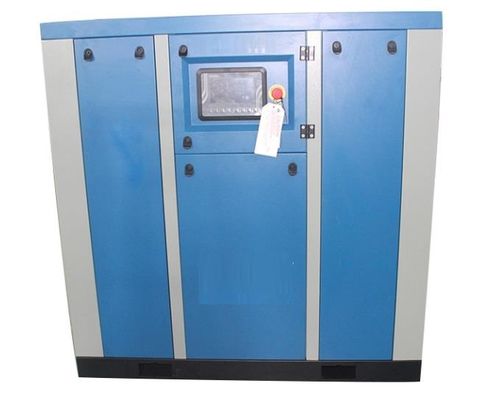

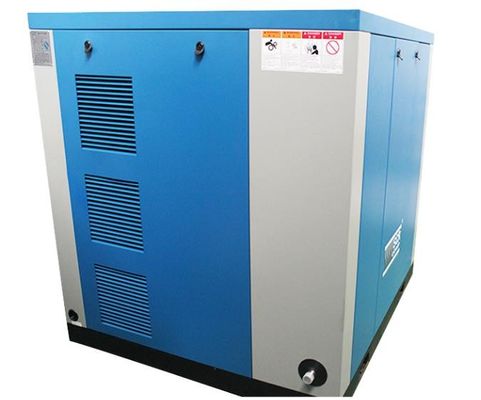

1.2m3 Min 15 Hp Oil Free Rotary Screw Compressor Double Layer Door Structure
| Place of Origin | CHINA |
|---|---|
| Brand Name | OEM |
| Certification | CE |
| Model Number | CHIC-15A |
| Minimum Order Quantity | 1 |
| Packaging Details | packing size(L×W×H)：1350mm×1200mm×800mm |
| Delivery Time | 7days |
| Supply Ability | 500Pcs/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 15HP 11KW 8Bar Belt Driven Used Rotary Oil Free Screw Air Compressor | Air Delivery | 1.2 M³/min |
|---|---|---|---|
| Electricity | Three Phase 380/60 Or 440/60 (V//Hz) | Pressure | 8Bar |
| Noise Level | 65dB | Power | 15HP/11KW |
| N.weigh | 450KGS | Color | Blue |
| Highlight | 1.2 m3 min oil free rotary screw compressor,15A oil free rotary screw compressor,1.2 m3 min 15 hp screw compressor |
||
Product Description
1. Independent inlet silencer box. Ensure the air filter inlet temperature equal to the ambient temperature.
2. Pressure loss of air filter inlet structure <1000Pa
3. Germany Rosenberg centrifugal fan.Low noise, high wind pressure.
4. Double-layer door structure,significantly reduces noises.
Technical parameters
| Model | CHIC-15A | ||
| Power | 15HP/11KW | ||
| FAD: (M3/MIN) | 1.2 | ||
| Pressure | 8 bar | ||
| Cooling | Air-cooling | ||
| Noise level | 65dB | ||
| Drive method | Belt drive type | ||
| Discharge temperature | Environment temp+15℃ | ||
| Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
| Air outlet: Pipe diameter(inch) | R1 | ||
| delivery | 15-20 days | ||
| Dimension | 1350MM*1200MM*800MM | ||
| Net weight | 450KGS | ||
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
