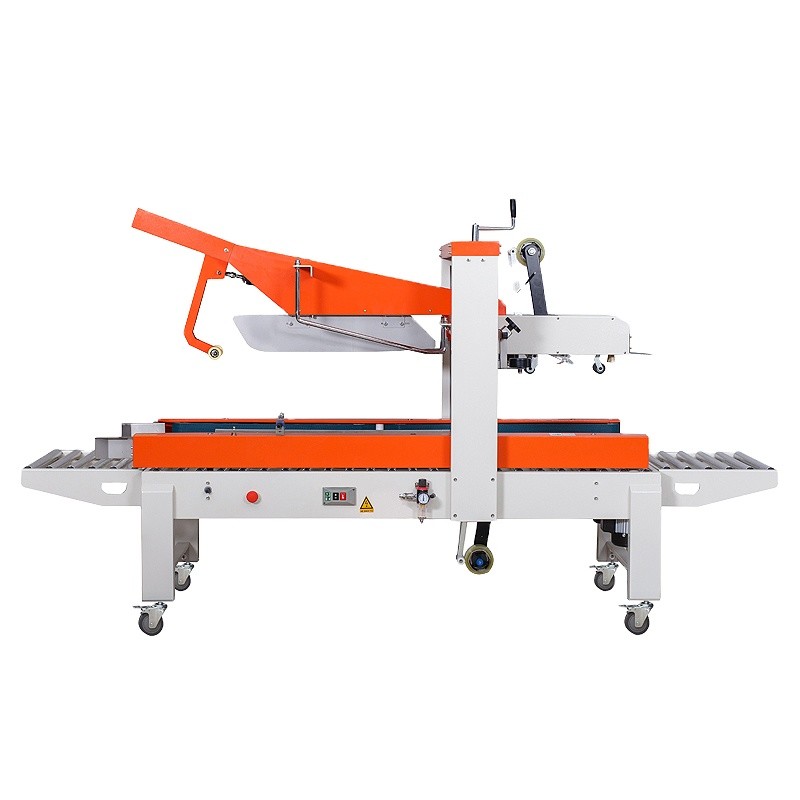

180kg Electric Folding Automatic Carton Sealer Case AC110V
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 piece per momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 5050Z Automatic Folding Carton Sealer Box Sealing Packaging Machine Corrugated Box Packing Machine | Function | Seal The Box With Tapes |
|---|---|---|---|
| Driven Type | Electric | Dimension | L 2685* W 900*H(1400-1600)mm |
| Speed | 0-20 M /min | Machine Weight | 180kg |
| Highlight | 180kg Electric automatic carton sealer,AC110V automatic carton sealer,AC110V automatic case sealer |
||
Product Description
Automatic Adhesive Tape Carton Box Sealing Packing Machine Corrugated Box Packing Machine
Product line description:
Summary:
The machine is mainly useful for the sealing and packing of cartons, which can be single-unit operation or also equipped into production line.
It is widely used in the fields of electrical domestic appliance, foodstuffs, general merchandise, medicine and chemical industry. The top, side and back flap of the carton can be folded automatically, with high speed& smooth.
Specifications:
|
Model
|
5050Z
|
|
Power supply
|
AC220V/50,AC110V/60Hz 400W
|
|
Max. packing dimension
|
600(L)*500(W)* 500(H) mm
|
|
Min. packing dimension
|
180 (L)*130 (W)*130 (H)mm
|
|
speed
|
18m/min
|
|
Width of adhesive tape
|
48mm. 60mm
|
|
Machine size
|
2685(L)*900(W)*1400-1600(H)mm
|
|
Machine weight
|
180 KG
|

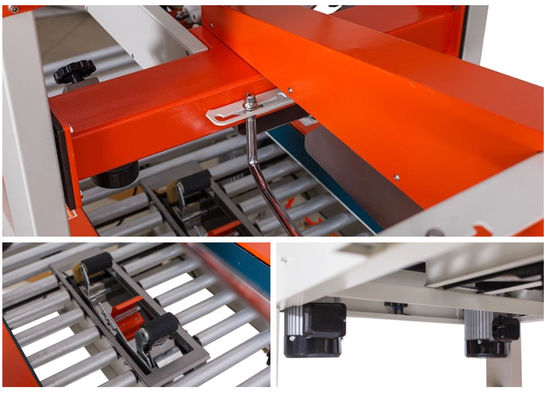

Product Feature:
1.Using international advanced technology manufacturing, and use imported parts, electrical components.
2.Manually adjust the width and height according to the carton specifications.
3. Automatic left and right folding, up and down sealing, economical, fast and smooth.
4. Equipped with blade guard to avoid accidental stab wounds.
5. Can be alone work, but also can be used with the automated packaging line.
Vertical box machine,Vertical Carton /box Erector
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2 years.
2.We provide free training and answer customer's question on technology in time.
FAQ:
Q1:What’s the MOQ of the machines?
The MOQ is 1 set.
Q2:What’s the carton material does the machine use?
3-layer or 5-layer corrugated cartons.
Q3:Is the machine Full-automatic or Semi-automatic?
There’ re both full-automatic and semi-automatic.
Q4:Which model carton sealing machine is suit for our requirement?
Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.
Q5:Is the carton sealing machine can be connected with production line?
Yes, it can be connected with the production line or single operating. Q6:What’s the warranty of the machine?
It’s 1 year warranty except the consuming spare parts Lifetime maintenance.
Q7:Can you provide customization service for us if we have the special requirements?
Sure, we can provide customization service for you.
Q8:What’s the added value service of your machine?
We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
| FXJ-5050AS | |
| Voltage (V/Hz) | AC 220/110V 50/60HZ |
| Power (W) | 200 |
| Max. Carton Size(W×H×L) (mm) | 500×500×∞ |
| Min. Carton Size(W×H×L) (mm) | 80×90×130 |
| Taping Speed(m/min) | 20 |
| Available Adhesive Tape | BOPP Water-free Adhesive tape PVC Adhesive tape |
| Height of Table (mm) | 580-780 |
| Width of AdhesiveTape (mm) | 36,48 |
| External Dimensions(L×W×H) (mm) | 1750×880×(1300-1500) |
| Net Weight (kg) | 115 |
| Max. outer diameter of tape (mm) | 250 |
