60F VFFS Packing Machine Vertical Form Seal Machine With Cup Weigher System
Place of Origin | CHINA |
---|---|
Brand Name | CHIC |
Certification | CE ,ISO |
Model Number | 60F |
Minimum Order Quantity | 1 pcs |
Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
Delivery Time | 25 working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 10 piece per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | 60F Vertical Type Vffs Packing Machine Packaging Machine With Cup-Weigher System | Packaing Material | Rolling Film, Laminated Film And Heat Sealing Laminated Paper Roll |
---|---|---|---|
Driven Type | Electric And Pneumatic | Type | Multi-function Packaging Machine |
Condition | New | Warranty Of Core Parts | 1 Year |
Machine Size | 950*850*1800mm | Bag Width | 1-130mm |
Bag Length | 1-170mm | Packing Speed | 2100-4200 Bags/hour |
Highlight | VFFS Packing Machine,60F VFFS Packing Machine,60F vertical form seal machine |
60F Vertical Type Vffs Packing Machine Packaging Machine With Cup-Weigher System
Application:
This machine is mainly used for packing powder products: such as spice powder, coffee powder, milk powder, detergent / washing powder, curry powder, egg powder, protein powder, stick powder, baby powder, chilli powder, soap powder, masala powder, and mehndi powder etc.
Technical information:
1. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
2. It can stock ten dispose, simple to change variety.
3. Sever motor drawing film, position accurately.
4.Temperature independent control system ,precision get to±1℃.
5. Horizontal, vertical temperature control, suitable for several of mix film, PE film packing material.
6. Packing type diversification, pillow sealing, standing type, punching etc.
7. Bag–making , sealing, packing, print date in one operation.
Specifications:
Type | DCF-60 |
Bag length | 1-170mm |
Bag width | 1-130mm |
Packing Speed | 2100-4200 bags/hour |
Measuring range | 50-250g |
Voltage power | 220V 50/60Hz/2.0Kw |
Sealing methods | back sealing |
Weight | 350kg |
Dimentions | 950*850*1800mm |
Features:
1. Powder packing machine is our company introduction of foreign advanced technology, and is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding,measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
2. The machine adopts high precision servo film transport system, PLC program control,developed touchable human-machine interface of advanced automatic positioning,photoelectric tracking, digital temperature control,etc.
3. Operation is more simple, perfect. It is the first choice of food packaging industry to improve the production efficiency, reduce labor intensity, improve the grade of packaging equipment.
4. Adopt double servo motor control system, the tension membrane more accurate, faster, more accurate measurement.
5.Transverse and longitudinal sealing temperature control independently, suitable for all kinds of composite film, PE film packaging materials, etc.

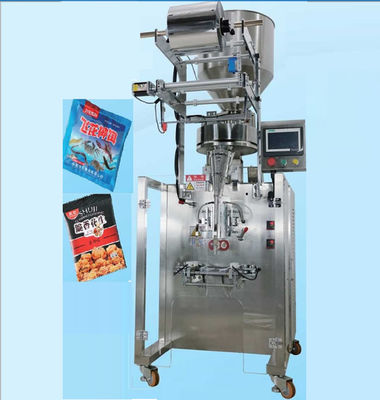

Machine detail:
Samples:
WHAT IS OUR ADVANTAGES
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use Alibaba Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1. Sign the Contact
2. Arrange 30% deposit to our factory
3. Factory arrange production
4.Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
