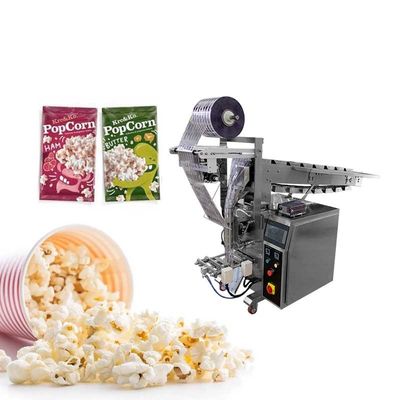

Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic

  • Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic
  • Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic
  • Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic
Place of Origin China
Brand Name CHIC
Certification CE ISO
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Semi-Automatic Small Vertical Chain Bucket Popcorn Packaging Machine Packing Material OPP/CPP OPP/CE PET/PE NILO/PE PE Laminated Rolling Film
Power 220V 50/60HZ 2KW Machine Size L)1100* W)755* H)1540mm
Packing Film Width 80-1050 Mm Bag Size W:100~200mm L: 100~280mm
Packing Speed 15~80bags/min Machine Weight 300kg
Highlight

VFFS Packing Machine With Nitrogen

,

Bucket Popcorn VFFS Packing Machine

,

Bucket Popcorn vffs packaging machine
Leave a Message
Product Description



Semi-automatic small vertical chain bucket popcorn packing machine with nitrogen

Applications:


Automatic Weighing Food Rice Full-Automatic Food Vacuum Seal Packing Machine 304SS is suitable for all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Main Features:


   1. Stable and simply film roll structure enable roll film running smoothly.

   2. 7inch Delta touch screen, easy operation and multiple language for choice.

   3. Self diagnosis failure function, machine error can be clearly displayed.

   4. All controls are achieved by software, easy for function adjusting and upgrading.

   5. Self diagnosis failure function, machine error can be clearly displayed.


Machine specification:


Model
DS-320E
Measuring Range
50~ 200g
Packaging Speed
30 ~ 70 bags/min
Bag Width
50 ~ 150mm
Bag Length
40~ 200mm
Film Roll Width
320mm
Power
220V,50HZ,1.2KVA
Bag Type
Pillow Bag Sachet Pouch
Machine Size
( L ) 1100x ( W ) 755 x( H ) 1540mm


Machine details:

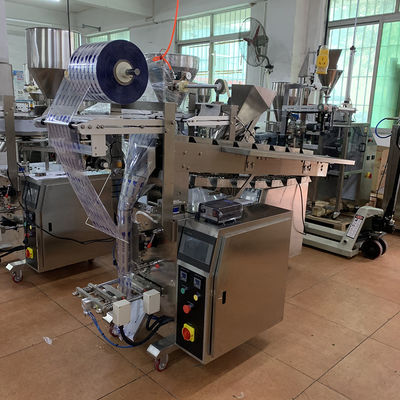

Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic 0

Easy Control Touch Screen

Language: Standard English and Chinese. Any language can be customized.

PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.



Film Roller



The film can be replaced easily on the film roller.

Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.



Chain Bucket



#304 stainless steel bucket.

Very flexible, can pack a variety of small foods snack.





Bag Former



#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.





Durable Sealing Cutting Blades



High speed of fine and clean cutting and sealing bags.

Positioned stop function avoides sticking blades and wasting materials.

According to customer needs,the bag types can be changed:back seal, three sides seal, four side seal,stand-up bag and linking bag.





Samples:


Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic 1

Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic 2

Small Vertical Chain Bucket Popcorn VFFS Packing Machine With Nitrogen Semi Automatic 3



Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.

After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.

Operation training:
1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling.
2: Welcome to our factory learning.
3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame


FAQ



 What information from client is neccessory for correct quotation?

1. What is your product?
2. The size of your bag?

How to connect with gas source?
Buyer prepare gas bottle, then connect our machine directly with hose will be ok. We leave a hole on the machine for gas connect.

What kind of air compressor shall we use?
Small air compressor with 30L gas tank, and supply 0.6-0.8Mpa air pressure will be ok.

Shipment term?
1. We ship under FOB or CIF by sea usually.
2. This machine is small, it can also be send by express, or by air.

Payment?
40% prepayment before production, balance before shipment.

Lead time?
7-15days after prepayment.

Do you test machine before shipment?
We will test and send video for confirmation before shipment.
