Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply

  • Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply
  • Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply
  • Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply
  • Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply
  • Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply
Brand Name CHIC
Certification ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Filling Accuracy 0.5-1% Filling Format 1000ml Prisma, Square, Or Basis
Air Consumption 3m³/min, 0.8-1MPa Packing Capacity 1000-3000CPH
Solution Turn Key Proejct Power Consumption 23kw
Power Supply 380V/50Hz Or Customized Control PLC
Highlight

1000ml Prisma Square Or Basis Aseptic Carton Filling Machine

,

1000-3000CPH Packing Capacity Gable Top Carton Filling Machine

,

380V/50Hz Power Supply Brick Type Carton Filling Machine
Leave a Message
Product Description
Customized 4830mm×2150mm×3780mm Gable Top Cartons Fill and Seal Machine for Easy Packaging
Product Description
The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging material in an aseptic environment. It completes sealing and forming of the package, extending product shelf life. This machine integrates advanced aseptic principles with innovative "triple sterility guarantee" technology to ensure high aseptic performance, production stability, and automation.
Suitable for pure beverages including milk, goat milk, soy milk, and vegetable protein drinks, this equipment features an integrated mechanical, electrical, and pneumatic design with 6 national patents. It offers advantages like simple structure, easy maintenance, and uses top-tier international control components for high automation and low energy consumption.

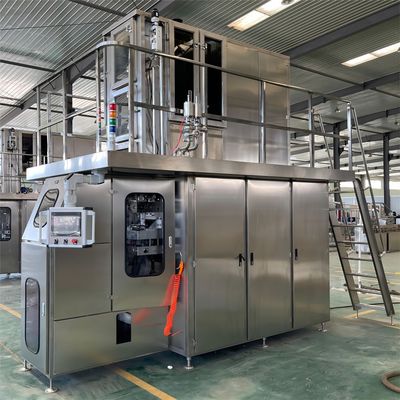

Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply 0
Key Features
Advanced fully automatic PLC control system for paper feeding, strip pasting, sterilization, filling, and forming
Multiple control systems including multi-point sensing alarm, automatic strip pasting, sterile system, and servo correction
Safe sterilization technology ensuring pure milk safety
User-friendly human-machine interface for intuitive operation
Key components sourced from internationally renowned companies
Compatible with 6-layer web-based composites (PE/paper/PE/aluminum foil/PE/PE)
Technical Parameters
No Name Parameters
1 Standard capacity 1L Square type carton
2 Brick cartons specifications Customized as per drawing and sample laminated paper roller
3 Packaging Raw paper aluminum foil polyethylene 7-layer laminated composite paper
4 Capacity 1000-3000 cartons/h
5 Number of operators 2
Equipment dimensions: 4830mm×2150mm×3780mm
Total weight: 2000Kg
Total power: 20KW
Compressed air consumption: 3m³/min
Working pressure: 0.8-1MPa
Cooling water: Clean soft water
H₂O₂ consumption: 0.2L/per shift
H₂O₂ concentration: 35%
Applications
Designed for filling various liquid beverages including soy milk, plant milk, yogurt, fruit/vegetable juice, and plant protein into paper-aluminum-plastic composite cartons. Available in multiple configurations:
125ml
200S (200ml slim type)
200B (200ml standard type)
250S (250ml slim type)
250B (250ml standard type)
200Z (200ml diamond carton with cap/straw)
250D (250ml diamond carton with cap/straw)
330D (330ml diamond carton with cap/straw)
500D (500ml diamond carton with cap/straw)
500S (500ml Slim carton with cap/straw)
1000S (1000ml slim type)
1000D (1000ml diamond carton with cap)

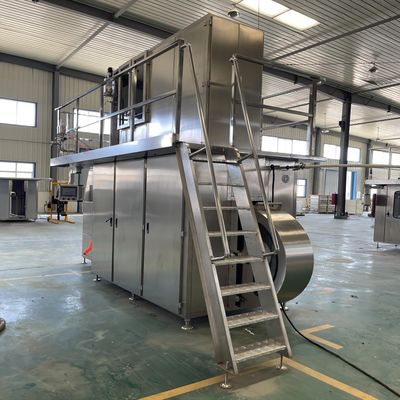

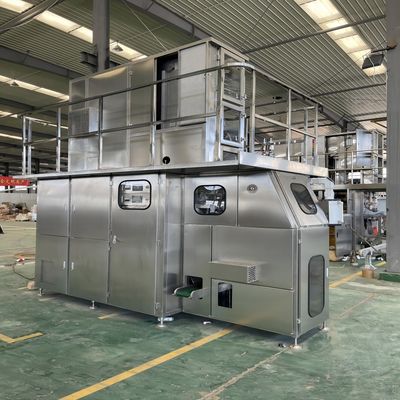

Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply 1 Customized 1000ml Prisma Square Or Basis Aseptic Carton Filling Machine with 1000-3000CPH Packing Capacity and 380V/50Hz Power Supply 2
Support and Services
Comprehensive technical support and services to ensure optimal performance:
Installation and setup assistance
Operator and maintenance training
Regular maintenance schedules
Prompt troubleshooting and technical support
Packing and Shipping
Packed with inner plastic films and strong PLY wooden case for sea shipping. Machines are protected with preservative film to prevent saltwater corrosion.
After-Sales Service
Installation videos and manuals provided
Free factory training available
Technician dispatch option (customer covers expenses)
1-year quality warranty with lifetime technical support
Free spare parts during warranty period
Post-warranty spare parts available at cost
Frequently Asked Questions
What is the brand name of this Aseptic Carton Filling Machine?
CHIC
What is the model number?
CHIC-3000BS
Where is it manufactured?
China
What certifications does it have?
ISO and CE certified
What is the minimum order quantity?
1 piece
