100% Pure Juice Aseptic Carton Filling Machine with 23kw Power Consumption and 3m3/min Air Consumption
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Filling Accuracy | 0.5-1% | Packing Capacity | 1000-3000CPH |
|---|---|---|---|
| Power Supply | 380V/50Hz Or Customized | Machine Size | 4830mm×2150mm×3780mm |
| Machine | SUS304 | Cap Size | φ26-φ36, One Size For One Machine Or Customized |
| Filling Format | 1000ml Prisma, Square, Or Basis | Control | PLC |
| Highlight | 100% Pure Juice Aseptic Carton Filling Machine,23kw Power Consumption Aseptic Carton Filling Machine,3m3/min Air Consumption Aseptic Carton Filling Machine |
||
Product Description

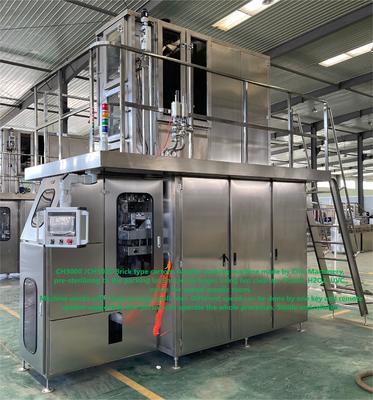

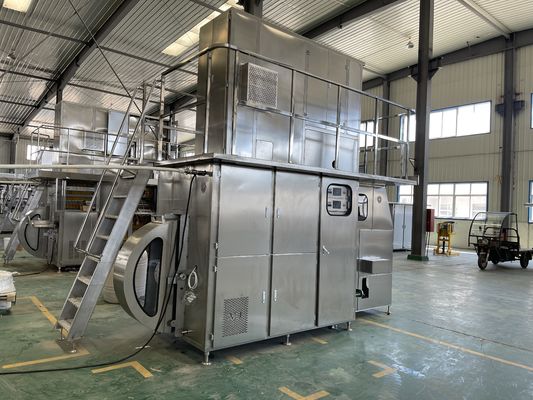

Turn Key Project Aseptic Carton Filling Machine with 23kw Power Consumption and 3m³/min Air Consumption
1000ml Gable Carton Aseptic Filling Machine For 100% Pure Juice
The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging material under aseptic conditions, while also completing package sealing and forming to extend product shelf life. This advanced equipment incorporates "triple sterility guarantee" technology, ensuring superior aseptic performance, production stability, and automation levels.
Ideal for pure beverages including milk, goat milk, soy-milk, and vegetable protein drinks, this machine integrates mechanical, electrical, and pneumatic components with 6 national patents. It features a simple structure, easy maintenance, and uses premium international control components for reliable operation with low energy consumption.
Key Features
- Advanced PLC-controlled automation for paper feeding, sterilization, filling, and forming processes
- High reliability with multi-point sensing alarm control and servo correction systems
- Safe sterilization technology ensuring pure milk packaging safety
- User-friendly human-machine interface for intuitive operation
- Premium components from globally recognized manufacturers
- Compatible with multi-layer composite packaging materials
Technical Specifications
| No | Parameter | Value |
|---|---|---|
| 1 | Standard capacity | 1L Square type carton |
| 2 | Brick cartons specifications | Customized to your requirements |
| 3 | Packaging material | 7-layer laminated composite paper |
| 4 | Capacity | 1000-3000 cartons/h |
| 5 | Operators required | 2 |
| 6 | Dimensions | 4830*2150*3780mm |
| 7 | Weight | 2000Kg |
| 8 | Power consumption | 20KW |
| 9 | Air consumption | 3m³/min |
| 10 | Working pressure | 0.8-1MPa |
| 11 | Cooling water | Clean soft water |
| 12 | H2O2 consumption | 0.2L/per shift |
| 13 | H2O2 concentration | 35% |
Applications

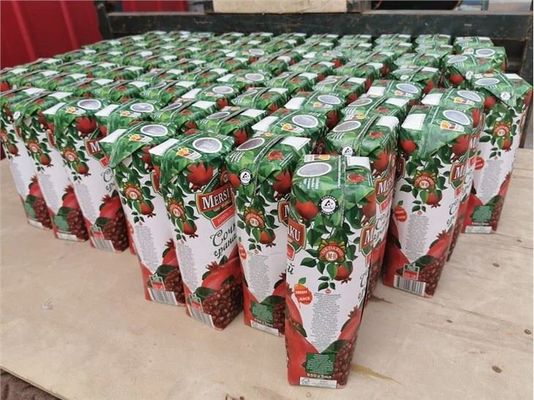

This machine fills various liquid beverages including soy milk, plant milk, yogurt, fruit/vegetable juice, and plant protein into environmentally friendly paper-aluminum-plastic composite cartons. Available configurations accommodate multiple shapes and capacities from 125ml to 1000ml.
Support & Services
Our comprehensive support includes installation assistance, maintenance checks, software updates, and troubleshooting. We provide operator training and dedicated technical support to maximize machine uptime and performance.
Certifications
Frequently Asked Questions
How to find a suitable packing machine for my product?
Provide details about your product type, required package size/weight, and machine specifications. We'll recommend the optimal solution.
Is engineer available to serve overseas?
Yes, with travel costs covered by the client. We provide detailed installation videos and remote support.
How can we verify machine quality before delivery?
We provide pre-delivery photos/videos and accommodate third-party inspections.
What payment and delivery terms are available?
Standard process includes contract signing, 30% deposit, production, testing, inspection, balance payment, and shipping arrangement.
