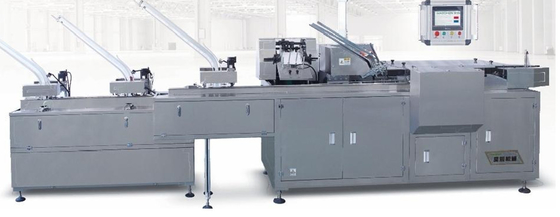

Multi Automatic Cartoning Equipment HCZ-130CL Four Side Packing Carton Storage For Blister
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Model Number | HCZ-130CL |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 piece per momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Capacity | 40-130cartoons/min | Box Quality | 250-350g/m²(As The Carton Size And Decide) |
|---|---|---|---|
| Box Max Size | 180×90×80mm(L×W×H) | Box Mix Size | 55×20×12mm(L×W×H) |
| Compressed Air | 0.5MPa Flow Over 0.6m³/min | Dimension | 4200×1200×1750mm(L×W×H) |
| Highlight | Multi Automatic Cartoning Equipment,130 Cartoons/M Cartoning Box Packing Machine,Blister Side Packing Cartoning Equipment |
||
Product Description
Multi Automatic Cartoning HCZ-130CL side paking Carton Storage for blister and cosmetics bottles
Product Application
This product is my company with the most advanced technology at home and abroad on the basis of further improve and perfect, is currently the most suitable for the actual production of new equipment the equipment is machine,electricity,gas,light integration of high-tech products;this product is Zhejiang This product is suitable for aluminum plastic plate,medicine bottles,cosmetics, medical equipment,electronic and daily necessities,and similar items of the box packaging,with automatic completion of the use of the manual folding,cartons Automatically open,boxing items,print batch number,box and other functions.The machine can be used alone or in conjunction with other equipment to form a complete production line.
Specifications:
Multi Automatic Cartoning HCZ-130CL side paking Carton Storage for blister and cosmetics bottles
| Production capacity | 40-130cartons/min | |
| Box | Box quality | 250-350g/m²(As the carton size and decide) |
| Max.size | 180×90×80mm(L×W×H) | |
| Min.size | 55×20×12mm(L×W×H) | |
| Leaflet | Paper quality | 55-65g/m² |
| Max.size | 240×190mm(LxW) | |
| Min.size | 110×80mm(LxW) | |
| Compressed air | 0.5MPa flow over 0.6m³/min | |
| Air consumption | 20m³/h(pressure:0.5-0.7MPa) | |
| power supply | AC220V 50Hz 1.0kw | |
| Dimensions | 4200×1200×1750mm(L×W×H) | |
| Weight | 1200kg | |
Features
■The use of PLC automatic control system,frequency control,electrical components are used internationally renowned brands.
■ Photoelectric monitoring of various parts of the action,abnormal operation,can display a part,and can automatically shut down in order to exclude.
■ Can automatically remove the missing or lack of instructions for the packaging.
■ If the lack of version,manual,carton will not automatically cut.
■The servo system blanking,active transmission overload protection device.
■ Stable performance,easy to operate.
■ The machine can be 8-12 workers on the workload.
■The machine can be based on the user's different requirements,can replace the packaging specifications,adjustment and debugging is simple,that is applicable to the production of large quantities of a single species,but also to meet the user variety of production.
■The equipment replacement packaging specifications,do not need to change any parts,easy to adjust,about 20 minutes to complete.
After service
Installation:
1- We provide videos and instruction manual to show the process of installation.
2- We provide training for installation for free in our factory.
3- We can send technician to buyer's factory to install the machine and provide training service,but customer affords the engineer’s visa fee, double-flight fee, hotel fee and 180USD per day salary.
After Sales Service:
1- One year quality warranty and free lifetime technique support.
2- Free spare parts would be supplied if machine broken within warranty period.
3- After the warranty period, the spare parts for replacement are offered based on certain charge.
FAQ:
Q1:What’s the MOQ of the machines?
The MOQ is 1 set.
Q2:What’s the carton material does the machine use?
Paper quality55-65g/m²
Q3:Is the machine Full-automatic or Semi-automatic?
There’ re both full-automatic and semi-automatic.
Q4:Which model carton sealing machine is suit for our requirement?
Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.
Q5:Is the carton sealing machine can be connected with production line?
Yes, it can be connected with the production line or single operating.
Q6:What’s the warranty of the machine?
It’s 1 year warranty except the consuming spare parts Lifetime maintenance.
Q7:Can you provide customization service for us if we have the special requirements?
Sure, we can provide customization service for you.
Q8:What’s the added value service of your machine?
We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
