500kg Automatic Box Carton Packing Machine Sealing 1935mm

  • 500kg Automatic Box Carton Packing Machine Sealing 1935mm
  • 500kg Automatic Box Carton Packing Machine Sealing 1935mm
  • 500kg Automatic Box Carton Packing Machine Sealing 1935mm
Place of Origin China
Brand Name CHIC
Certification CE ISO
Model Number ZYK-33
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 15 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 50 piece per momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Paper Carton Box Erecting Forming Machine Corrugated Box Packing Machine Function Open And Seal The Box With Tapes
Driven Type Electric Dimension L2320mm*W2000mm*H1935mm
Speed 1200-1500cartons/h Machine Weight 500kg
Highlight

1935mm carton packing machine

,

500kg carton packing machine

,

1935mm automatic carton sealing machine
Leave a Message
Product Description

Corrugated Box Packing Machine Box Filling And Top Sealing Machine



Machine description:

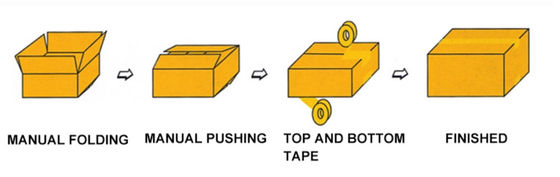

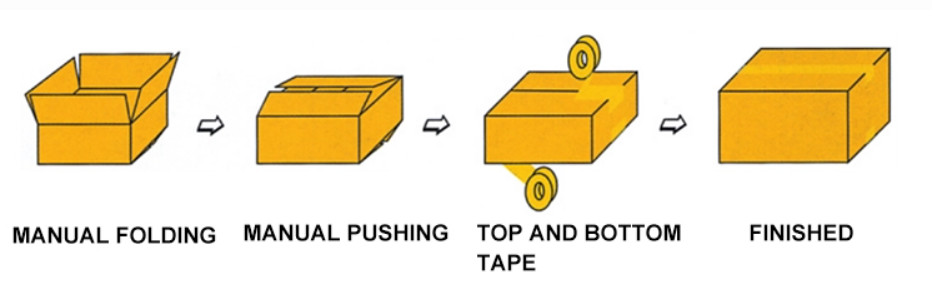

Carton forming machine can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.



Adhesive tape used: Bopp. WateFree Adhesive Tape, PVC Adhesive Tape



Main Features



1. This machine adopts a double-serve motors system, which is precise, stable and durable.
2. Carton storage use vertical style, can replenish empty carton at any time
3. Suction box, molding and sealing are automatic processing at one time
4. User can find the fault point through the touch screen, easily troubleshooting
5. Cartons finished machine alarms
6. Spare parts can be supplied at any time for the standard machine
7.It also can be customized according to customer requirements



Technology Parameters



SPECIFICATIONS FOR ZYK-09 CARTON OPEN MACHINE
Type
ZYK-33
gift carton stored pieces
150pcs
Table height
220 mm
Working speed
1200-1500cartons/h
Power
220/380V, single phase, 50/60Hz
Pneumatic
6-7kg/cm2 450 L/min
Pneumatic element
Taiwan AirTAC
Motor
Taiwan Brand,
Contactor and switch
France Schneider
Photo-sensor
Japan Omron
PLC
Schneider
Machine size
(L) 2320mm, (W) 2000mm, (H) 1935mm

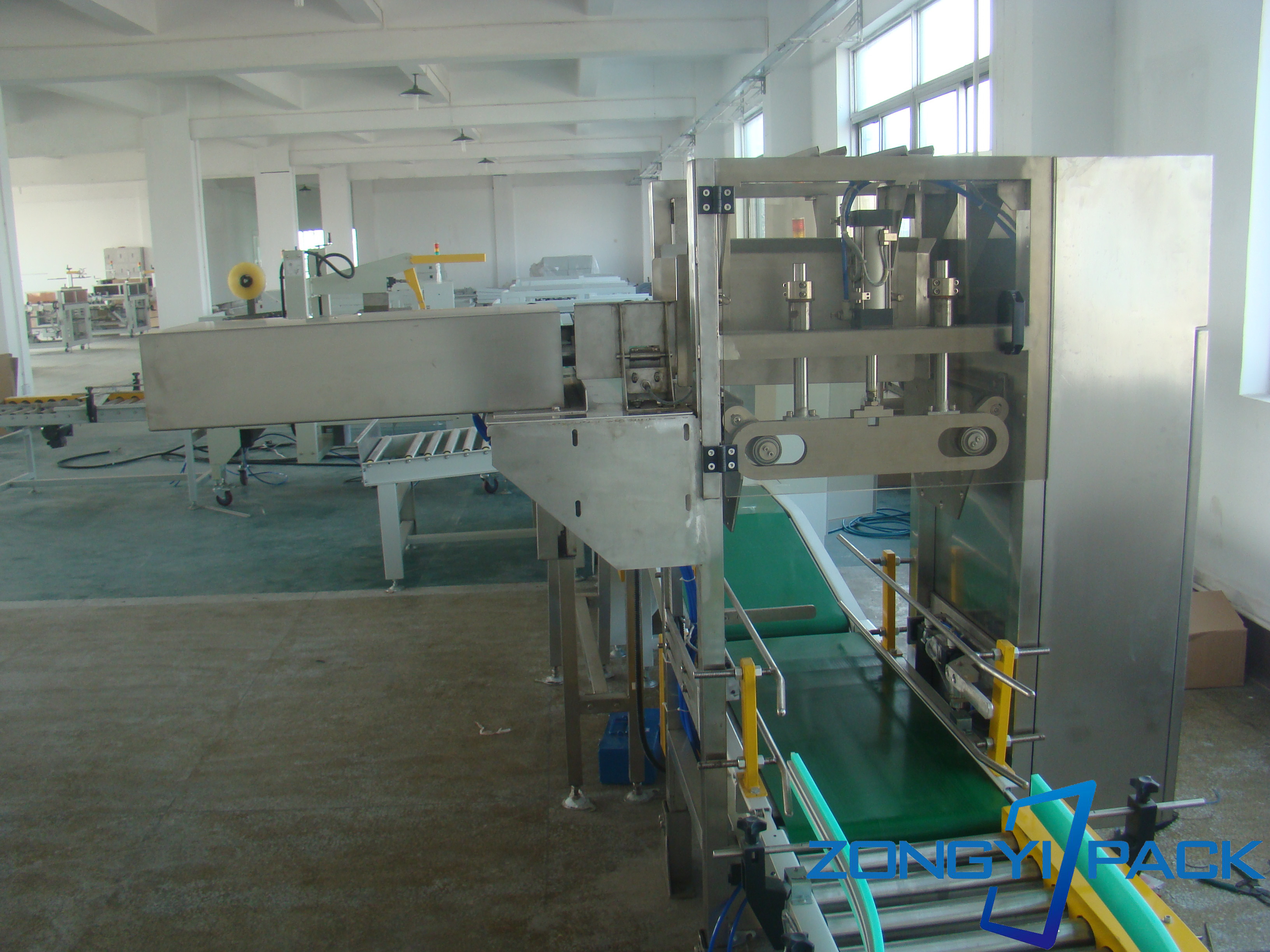

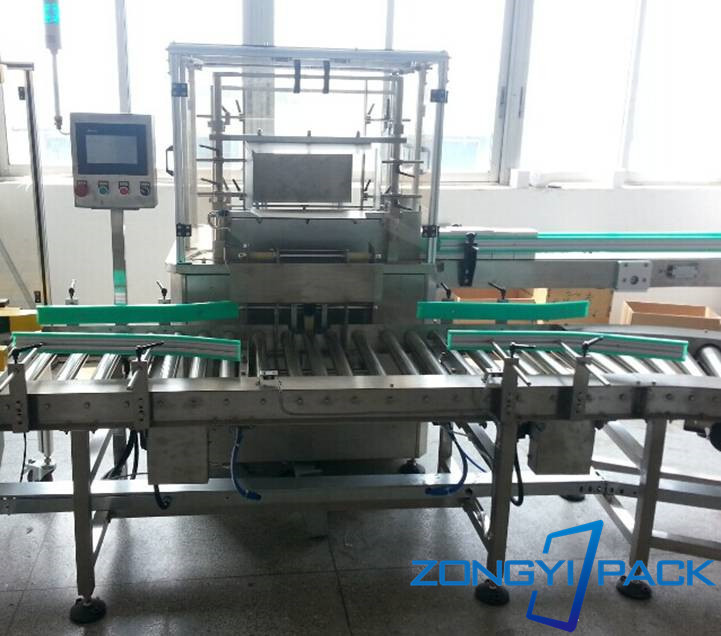

500kg Automatic Box Carton Packing Machine Sealing 1935mm 0





Pre-sales service:

1. We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2. We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3. We will recommend and offer machine according to customer’s use and purchase budget.



In-sale service:

1. We will supply each manufacturing step photo for customer checking on time.

2. We will prepare packing and shipment according to customer’s needing in advance.

3. Testing the machine and making video for customer’s checking.



After-sale service:

1. We will guarantee the machine quality for 2 years.

2. We provide free training and answer customer's question on technology in time.


FAQ:


Q1: What’s the MOQ of the machines?

The MOQ is 1 set.

Q2: What’s the carton material does the machine use?

3-layer or 5-layer corrugated cartons.

Q3: Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.

Q4: Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.

Q5: Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating. Q6:What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.

Q7: Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.

Q8: What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
