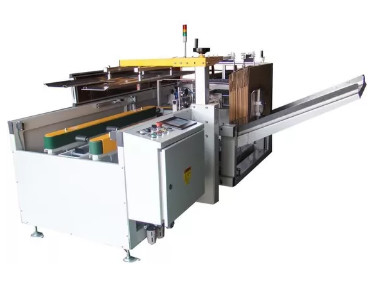

Erector Corrugated Box Packing Machine ZYK-09 Horizontal Carton Storage
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Model Number | ZYK-09 |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 piece per momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | ZYK-09 | Carton Size | (L)250-400(W)180-320(H)150-350mm |
|---|---|---|---|
| Tape Width | 48mm | Table Height | 950 Mm |
| Working Speed | 1800-2100cartons/h | Power | 220/380V, Single Phase, 50/60Hz |
| Highlight | 380V Corrugated Box Packing Machine,Erector Corrugated Box Packing Machine,Carton Packing Machine 2100 Cartons/H |
||
Product Description

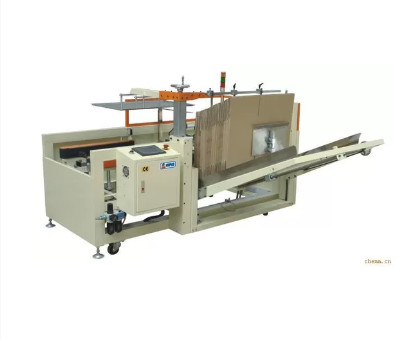

Box Open And Bottom Sealing Machine Box Erector Machine
Product Application

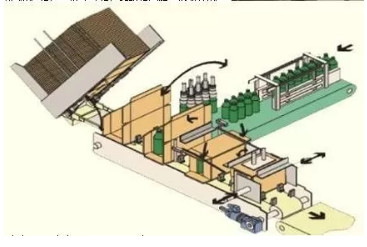

This machine is for the soft cartons, multi-layer carton boxes and daily used cartons, it is usually installed at the beginning of the cartons fill and seal packing lines, to feed the formed cartons and to open and form the cartons one by one to service for the next steps.Its speed decides the whole line speed too, so it is a very import machine.
Specifications:
|
SPECIFICATIONS FOR ZYK-09 CARTON OPEN MACHINE
|
|||
|
Type
|
ZYK-03H35
|
||
|
Carton size
|
(L)250-400(W)180-320(H)150-350mm
|
||
|
Tape width
|
48mm
|
||
|
Table height
|
950 mm
|
||
|
Working speed
|
1800-2100cartons/h
|
||
|
Power
|
220/380V, single phase, 50/60Hz
|
||
|
carton storage capacity
|
70pcs once time
|
||
|
Pneumatic
|
6-7kg/cm2 450 L/min
|
||
|
Pneumatic element
|
Taiwan AirTAC
|
||
|
Motor
|
Taiwan Brand,
|
||
|
Contactor and switch
|
France Schneider
|
||
|
Photo-sensor
|
Japan Omron
|
||
|
PLC
|
Schneider
|
||
|
Machine size
|
(L) 3260mm, (W) 1150mm, (H) 1840mm
|
||
Main Features
1. This machine adopts a cam continuous system, which is stable and durable.
2. Carton storage use horizontal style, can replenish empty carton at any time
3. Suction box, molding and sealing are automatic processing at one time
4. Molding and sealing adopts stepless speed controlling, the speed is adjustable, save time
5. Exchange time is 2-2.5 minutes, it is the faster than others
6. User can find the fault point through the touch screen, easily troubleshooting
7. Adding an adhesive tape leveling mechanism to solve the problem of end jumping in the process of high speed stickup
8. This is a standard machine, spare parts can be supplied at any time
9.It also can be customized according to customer requirements
FAQ:
Q1:What’s the MOQ of the machines?
The MOQ is 1 set.
Q2:What’s the carton material does the machine use?
3-layer or 5-layer corrugated cartons.
Q3:Is the machine Full-automatic or Semi-automatic?
There’ re both full-automatic and semi-automatic.
Q4:Which model carton sealing machine is suit for our requirement?
Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.
Q5:Is the carton sealing machine can be connected with production line?
Yes, it can be connected with the production line or single operating. Q6:What’s the warranty of the machine?
It’s 1 year warranty except the consuming spare parts Lifetime maintenance.
Q7:Can you provide customization service for us if we have the special requirements?
Sure, we can provide customization service for you.
Q8:What’s the added value service of your machine?
We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
