Multifunction Automatic Lights Cartoning Machine AC220V 50Hz HCZ-80

  • Multifunction Automatic Lights Cartoning Machine AC220V 50Hz HCZ-80
  • Multifunction Automatic Lights Cartoning Machine AC220V 50Hz HCZ-80
Place of Origin China
Brand Name CHIC
Certification CE ISO
Model Number HCZ-80
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 15 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 50 piece per momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Production Capacity 50-70cartoons/min Box Quality 250-350g/m²(As The Carton Size And Decide)
Box Max Size 200×90×80mm(L×W×H) Box Mix Size 55×20×12mm(L×W×H)
Power Supply AC220V 50Hz 1.0kw Dimension 3200×1350×1750mm(L×W×H)
Highlight

Automatic Lights Cartoning Machine

,

Multifunction Automatic Cartoning Machine

,

Lights Horizontal Cartoning Machine
Leave a Message
Product Description

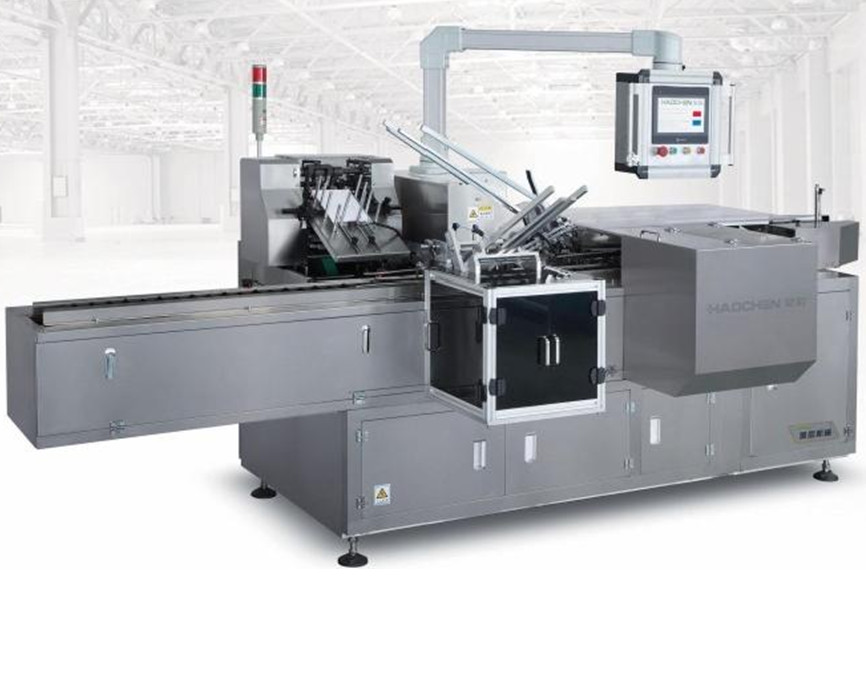

Multifunction Automatic Lights Cartoning Machine HCZ-80



Product Application



The machine is developed by our company's new products,wide range of

applications,high efficiency,stable operation,can be a multi-purpose machine

forfood,food,cosmetics,electronic packaging.


Specifications:
Multifunction Automatic Lights Cartoning Machine HCZ-80
Production capacit 50-70cartons/min
Box Box quality 250-350g/m²(As the carton size and decide)
Max.size 200×90×80mm(LxW×H)
Min,size 55×20×12mm(L×WxH)
Leaflet Paper quality 55-65g/m²
Max,size 240×190mm(LxW)
Min.size 110×80mm(LxW)
Compressed air 0.5MPa flow rate over0.6m³/min
Air consumption 20m²/h(pressure:0.5-0,7MPa)
  power supply AC220V 50Hz 1.0kw
Dimensions 3200×1350×1750mm(L×W×H)
Weight 1000kg



 Features



1. Can automatically complete the manual folding,carton molding,open,box box,batch printing,sealing and so on.And can be hot melt adhesive system to complete the hot melt adhesive seal.

2. The machine uses PLC control.Photoelectric monitoring of various parts of the action,abnormal operation,can automatically shutdown display reasons,in order to promptly troubleshooting.

3.  The rack is equipped with the main drive motor and clutch brake,and the board is equipped with various parts of the transmission system torque overload protection,can be overloaded in the case,the main drive motor and the drive part of the disconnect. to ensure that the whole The safety of

the machine

4. The machine is equipped with intelligent detection device.No material automatically no less manual,no less than the carton, convenient and the former equipment linked to work.In the detection process found that waste (no drug version,brochures) that is removed at the exit to ensure that the product quality fully meet the eligibility requirements.

5. The machine can be used alone,but also with the blister packaging machines and other equipment used to form a complete set of production lines.

6.  The machine can be based on the user's different requirements,can replace the packaging specifications,regulation and debugging is simple,that is applicable to the production of large quantities of a single species,but also to meet the users small batch of multi-species production.

7.  Production capacity.with automatic under the lining equipment capacity of 50-70 boxes /minute.


Multifunction Automatic Lights Cartoning Machine AC220V 50Hz HCZ-80 0Multifunction Automatic Lights Cartoning Machine AC220V 50Hz HCZ-80 1
FAQ:

Q1:What’s the MOQ of the machines?

The MOQ is 1 set.

Q2:What’s the carton material does the machine use?

Paper quality55-65g/m²

Q3:Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.

Q4:Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.

Q5:Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating.

Q6:What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.

Q7:Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.

Q8:What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
