Automatic Sleeve Type Shrink Packaging Machine BX-500H For Cartons Fruit And Beverage And Other Items
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Model Number | BX-500H |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 50 piece per momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feed With Horizontal Height | 850±50mm | Working Pressure | 0.5MPa |
|---|---|---|---|
| Packaging Film Width | Max.350mm | Gross Weight | 300KG |
| Highlight | Automatic Sleeve Type Shrink Packaging Machine,Fruit shrink packaging machine,Beverage shrink packaging machine |
||
Product Description

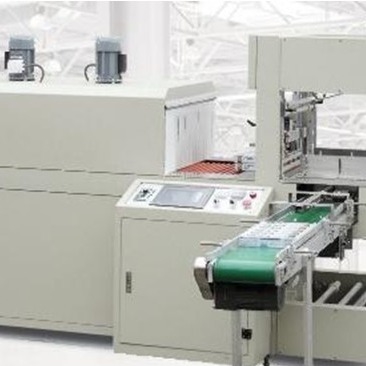

Automatic sleeve type shrink packaging machine BX-500H for cartons fruit and beverage and other items
Product Application
Suitable for packaging glass bottles, foam, paper boxes, toys, electronics, appliances, stationery, books, records, hardware tools, daily necessities, medicines, cosmetics, beverages, fruits, commemorative labels, and other items.
Specifications:
| Feed with horizontal height | 850±50mm |
| Working pressure | 0.5MPa |
| Packaging film width | Max.350mm |
| Power supply | 380V/50Hz |
| Installed power | 5kw |
| Actual power consumption | 3kw |
| Max packing size | 200×200×150mm(L×W×H) |
| Production capacity | 10-15packages/min |
| Dimensions | 3200×1720×1550mm(L×W×H) |
| Gross weight | 300kg |
| Main materia | Stainless steel |
Automatic sleeve type shrink packaging machine BX-500H for cartons fruit and beverage and other items
Features:
1. The whole machine adopts Siemens PLC temperature module control and touch screen operation from Germany, which is accurate and intuitive.
2. Unique double wide edge sealing ensures fast and firm sealing.
3. The conveyor belt adopts variable frequency speed regulation, ensuring smooth and reliable operation.
4. The furnace is transported with Japanese Teflon mesh belt, which is stable and temperature resistant. Roller conveyor belts can also be used, with high-temperature resistant silicone hoses wrapped around the drum
FAQ:
Q1:What’s the MOQ of the machines?
The MOQ is 1 set.
Q2:Is the machine Full-automatic or Semi-automatic?
There are both full-automatic and semi-automatic.
Q3:Which model bag sealing machine is suit for our requirement?
Please send us your bag size(bag drawing with dimension on it is rather helpful),then we can recommend the right machine for you.
Q4:Is the bag sealing machine can be connected with production line?
Yes, it can be connected with the production line or single operating.
Q5:What’s the warranty of the machine?
It’s 1 year warranty except the consuming spare parts Lifetime maintenance.
Q6:Can you provide customization service for us if we have the special requirements?
Sure, we can provide customization service for you.
Q7:What’s the added value service of your machine?
We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
