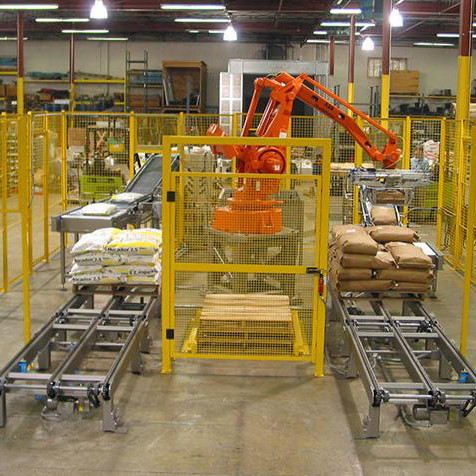

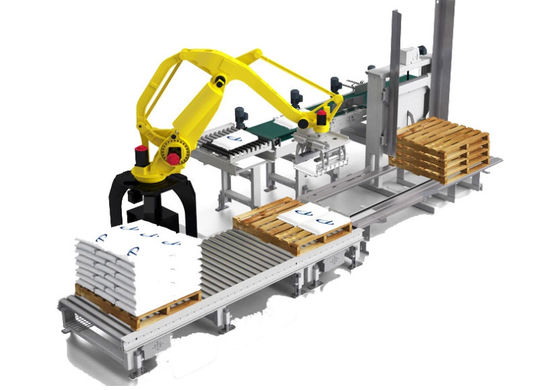

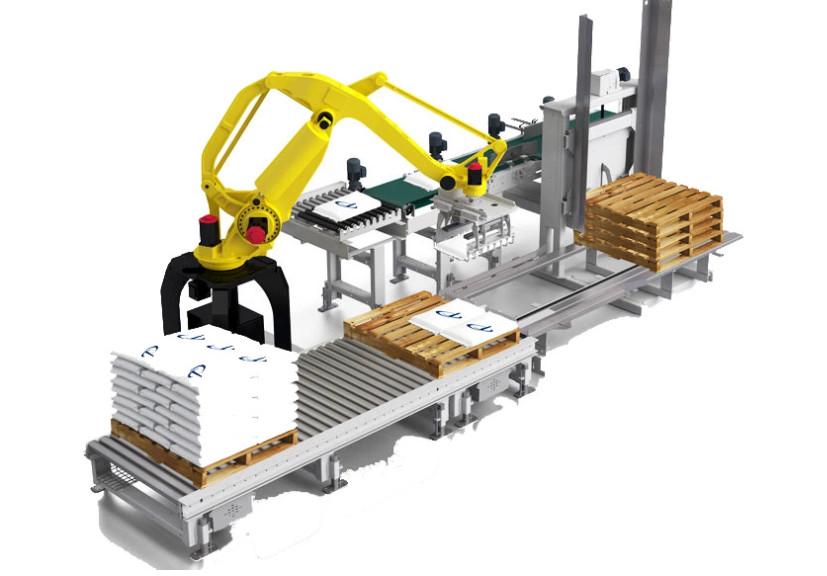

FESTO Case Packer Palletizer Collaborative Robot Chemical Beverage Plastics

Low-level palletizer can put packed product to pallet and stack, then push out it in order that forklift can carry it to warehouse. This machine adopts touch screen control,realizes intelligent operation management, simple, easy to master, can greatly reduce labor personnel and reduce the labor intensity. And adopt high speed, smooth, space-saving design. One machine is multi-purpose, adjust quickly and no need to worry about replacement for product.

Robot Palletizer Features:

1. welding-joint structure and adjustable footstand

2. product input area and buffer area are made of stainless steel expansion cylinder and the output expansion cylinder

3. the finished stack is made of carbon steel also can be chain transport

4. adopt with TR/NSK waterproof bearings

5. two arrangement forms: up sliding box and horizontal sliding

6. main lifting mechanism adopts motor drive transmission

7. adopting electric motor transmission sliding board

8. speed up conveyor and steering gear

9. one set of side pressure device for storage place

10. power roller conveyor in stack area

11. permutation buffer

12. one set of pallet positioned

13. two branches of clapboard for permutation

14. empty pallet supplier

15. 6 meters chain conveyor

Specifications:

Installation and adjustment

After the equipments are arrived at the customer’s site, the customers is responsible for unpacking and arranging the equipment according to the placement drawing; and do under our install-adjust technicians’ guidance.
According to requirement of water, electricity, air and steam consumption and the demands of quality level and pipeline, the User should connect the wire, cable and pipe of water, air and steam to the special position ordered in the installation area of production line ahead of time. Other relevant matching equipment and project should be finished before we adjust our equipment.
We’ll bring a suit of portable installation and adjustment tools ourselves during the period of installing and adjusting, the other instruments we need should be furnished by the customer for free including oxygen, acetylene angry, argon, etc. needed in the installation and adjustment site.
The customer should dispatch the capable person to accept training in the installing site.

Quality assurance

We guarantee the goods offered are brand-new, unused, with latest design and suitable material made, and we guarantee the specification of the equipments is consonance with the contract.
We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc that all belong to our responsibility.

Maintenance

Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
