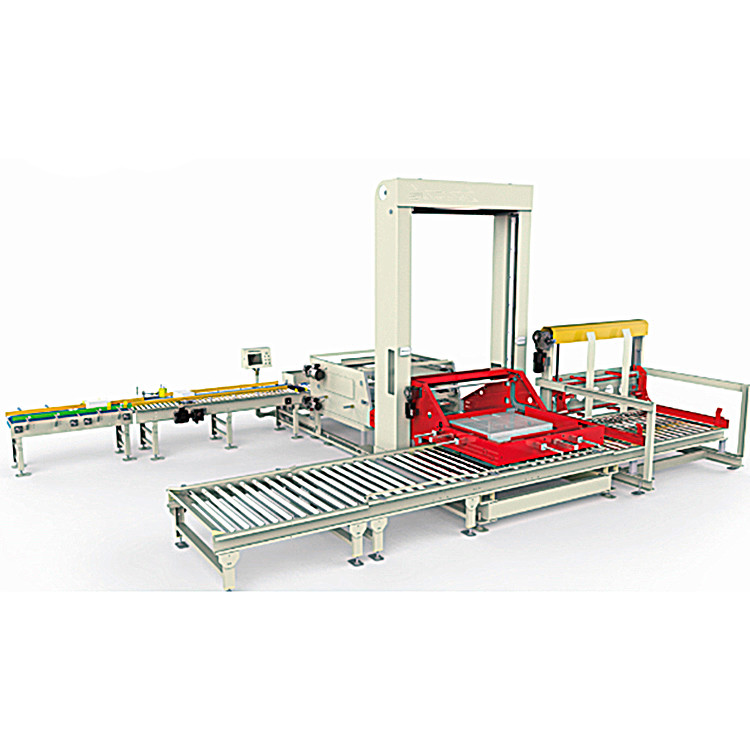

Water Automatic Palletizing System Bag Palletizer Machine Mitsubishi Servo Motor

  • Water Automatic Palletizing System Bag Palletizer Machine Mitsubishi Servo Motor
  • Water Automatic Palletizing System Bag Palletizer Machine Mitsubishi Servo Motor
  • Water Automatic Palletizing System Bag Palletizer Machine Mitsubishi Servo Motor
Place of Origin China
Brand Name CHIC
Certification CE ISO
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Industrial Automat Carton Case Palletizer For Bottle Water Beverage Factory Packing Type For Bottles, Bags, Cartons
Dimension Customized Max. Height Of Stack 1800mm
Driver Mitsubishi Servo Motor Air Cylinder AirTAC/FESTO
Speed 20-50 Pallets/hr
Highlight

automatic palletizing system

,

Water automatic palletizing system

,

bag palletizer machine
Leave a Message
Product Description

According to a certain order, palletizer stacks the packed products(in box, bag, bucket) to the corresponding empty pallets through a series of mechanical actions so as to facilitate handling and transporting batches of products to improve production efficiency. Meanwhile it can use stack layer pad to improve the stability of each stack layer. Various forms designed to meet different palletizing requirements.



Product Application

The palletizer is used to palletize the cartons that have been loaded into vessels onto pallets (wood, plastic) according to certain arrangements for automatic piling. The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage. The equipment adopts PLC + touch screen control, realizing intelligent operation and management. It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity. It is designed with the concepts of high speed, stability, and space saving. It adopts split type plate release, which is faster and saves more space. With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products. Application range: corrugated cases, plastic cases, barrel-shaped packaging materials, and bag-shaped packaging materials.



Features

Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number
The symmetry and compact structure design, suitable for the narrow space of the existing production sites
Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet. (pallet library is optional)
Don't have to change the stacking parts can complete several stacking way, only need to obtain the parameters is ok.



Specifications:



Stack Speed 40 cartons per minute, 4-5 layers per min
Height of Carton case >100mm
Max. carrying capacity /layer 150Kg
Max. carrying capacity /pallet Max 1500kG
Max. stack height 1800mm
Installation Power 15.3KW
Air Pressure ≥0.6MPa
Power 380V.50Hz , three-phase four-wire
Consumption of the Air 600L/Min
Size of the Pallet According to customer reqirement



Electrical Configuration:



PLC Siemens
Frequency Converter Danfoss
Photoelectricity Inductor SICK
Driving Motor SEW
Pneumatic Components SMC
LOW-voltage Apparatus Schneider
Touch Screen Schneider
Servo Panasonic

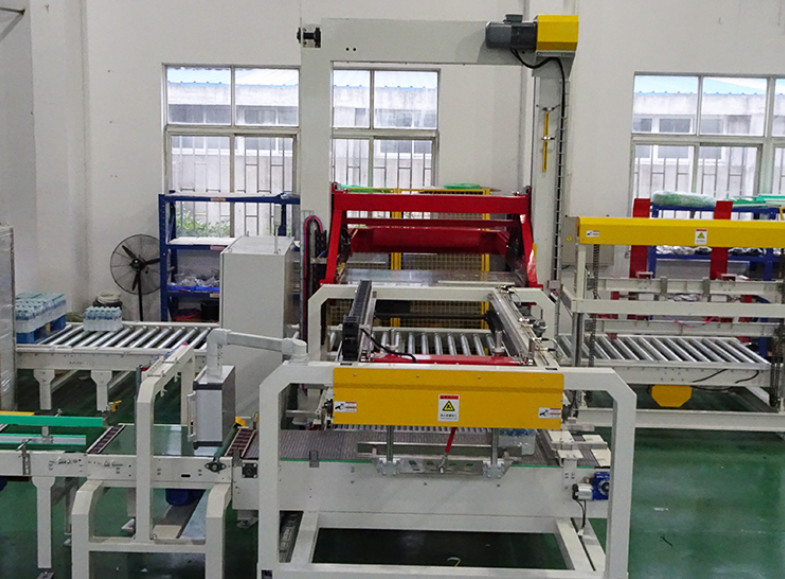

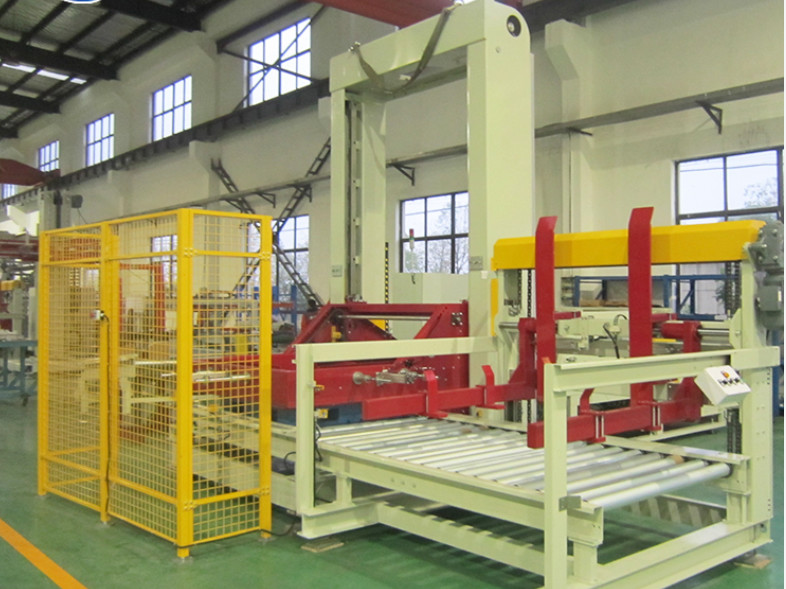

Machine details:



Water Automatic Palletizing System Bag Palletizer Machine Mitsubishi Servo Motor 0

Installation and adjustment



After the equipments are arrived at the customer’s site, the customers is responsible for unpacking and arranging the equipment according to the placement drawing; and do under our install-adjust technicians’ guidance.
According to requirement of water, electricity, air and steam consumption and the demands of quality level and pipeline, the User should connect the wire, cable and pipe of water, air and steam to the special position ordered in the installation area of production line ahead of time. Other relevant matching equipment and project should be finished before we adjust our equipment.
We’ll bring a suit of portable installation and adjustment tools ourselves during the period of installing and adjusting, the other instruments we need should be furnished by the customer for free including oxygen, acetylene angry, argon, etc. needed in the installation and adjustment site.
The customer should dispatch the capable person to accept training in the installing site.



Quality assurance


We guarantee the goods offered are brand-new, unused, with latest design and suitable material made, and we guarantee the specification of the equipments is consonance with the contract.
We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc that all belong to our responsibility.


Maintenance


Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
