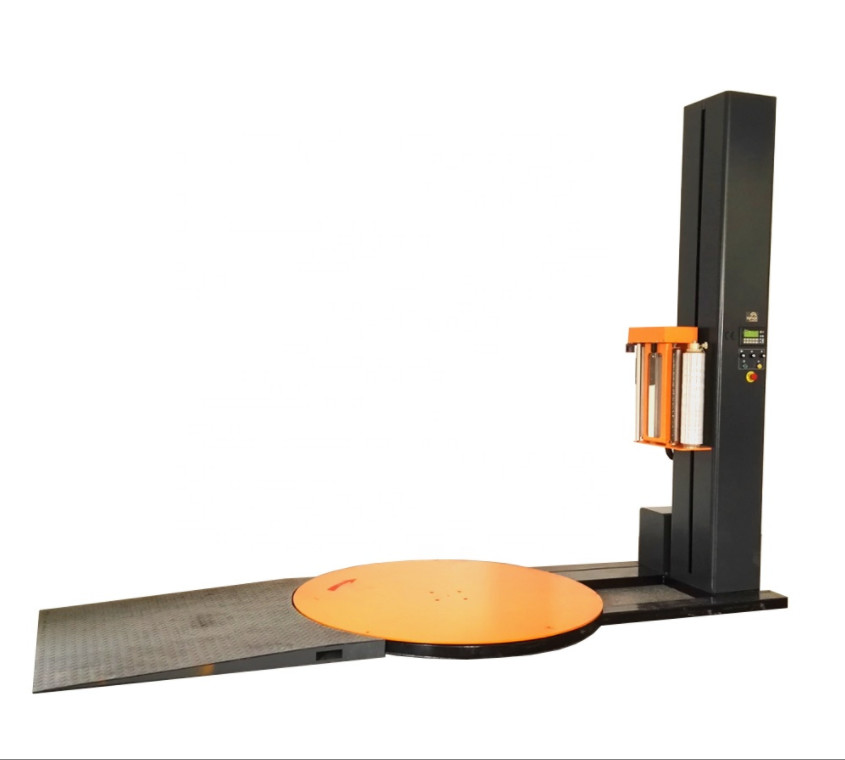

Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm

  • Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm
  • Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm
Place of Origin China
Brand Name CHIC
Certification CE ISO
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Stretch Film Machine For Wrapping Pallets Robot Palletizer Machine Packing Type Cartons, CANS, Bottles, Barrel, Bags, Case, Pallet
Dimension L2650*W1650*H2400mm Weight 750 Kg
Speed 20-50 Pallets/hr PowerTurntable Size 1650mm
Max. Loading 2000kg Turntable Height 85mm
Highlight

Stretch Robot Palletizer Machine

,

Wrapping Robot Palletizer Machine

,

1650mm automatic stretch wrap machine
Leave a Message
Product Description

Product Application

Stretch film pallet wrapping machine wrapper
T1650F Pallet wrapping machine is the most easy operating and cost saving way to protect the cargo from moisture, dust,damage.Wrapping layers and wrapping circles of the pallet is easy to choose. Wrapping height is also available for your preference. Your reputation rests on what you deliver to your customers. Make sure your pallet loads are safe to ship. The pallet wrapping machine gives you professional results on every load.



Features

•Open door film carriage

•Limit built-in
•1800mm wrapping height
•2000kgs loading
•Spring break stretch
•Home position: the turntable always stops at the same position
•Speed control on turntable
•Choose between 1 & 9 top and bottom wraps with re-enforce wrap
•Up & down or up only wrap cycle
•Semi auto and manual wrap options
•Adjustable pallet height photo sensor
•Secure Top Sheet Function
•Lockable control panel
•Adjustable tension with quick release
•Soft start and stop
•Machine can be paused during cycle
•Magnetic brake holds turntable still during loading/unloading
•Audible warning when running a cycle



Specifications:

Voltage
220V 50Hz 1P
Power
Turntable Motor:0.75kw;Film Motor:0.4kw;Column Motor:0.37kw
L*Wmm Wrapping Size
(500-1100)*(500-1200)
Wrapping Height
500-2000/2400
Capacity
20-40 pallet/Hour
Turntable size
1650mm
Turntable Height
85mm
Max loading
2000kg
Speed
Adjustable
Machine weight
700kg
Machine Size
2650*1650*2400mm

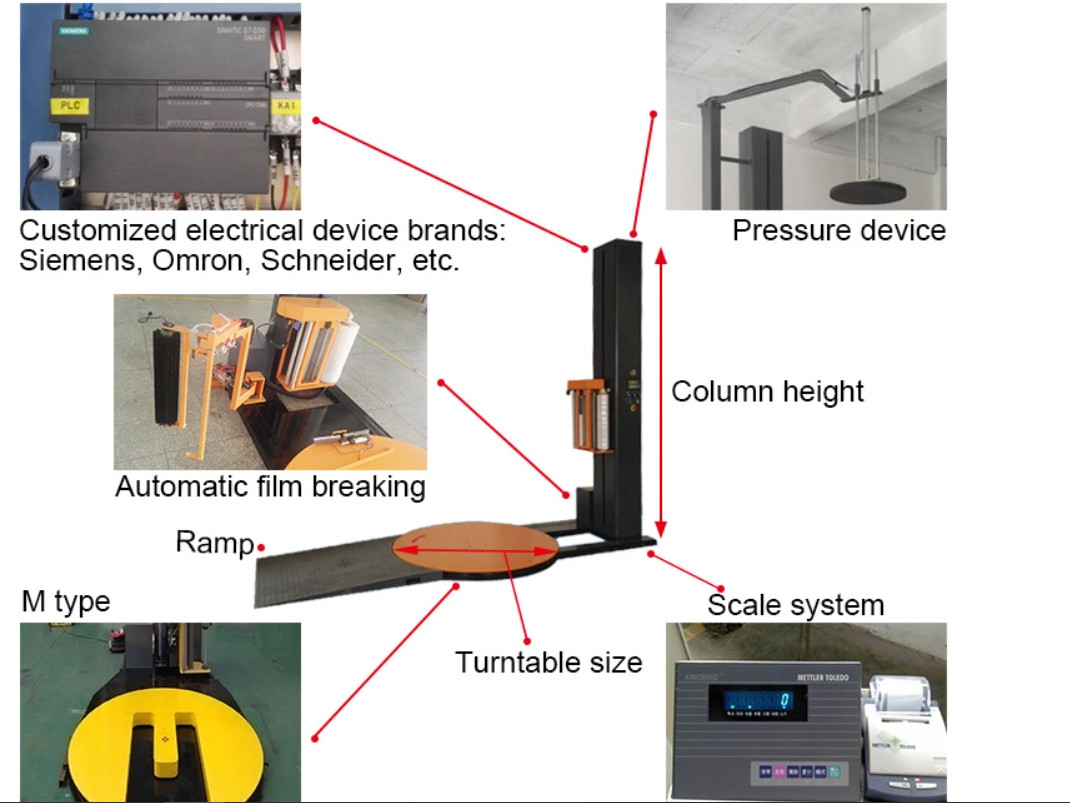

Machine details:

Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm 0

Max Pre-stretch 350%
Adjustable tension with quick release

Installation and adjustment



Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm 1

Independent PLC Inverter Control
Frequency conversion motor has less abrasion and stable packaging
Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm 2
Stretch film pallet Robot Palletizer Machine Automatic Wrap 1650mm 3



After the equipments are arrived at the customer’s site, the customers is responsible for unpacking and arranging the equipment according to the placement drawing; and do under our install-adjust technicians’ guidance.
According to requirement of water, electricity, air and steam consumption and the demands of quality level and pipeline, the User should connect the wire, cable and pipe of water, air and steam to the special position ordered in the installation area of production line ahead of time. Other relevant matching equipment and project should be finished before we adjust our equipment.
We’ll bring a suit of portable installation and adjustment tools ourselves during the period of installing and adjusting, the other instruments we need should be furnished by the customer for free including oxygen, acetylene angry, argon, etc. needed in the installation and adjustment site.
The customer should dispatch the capable person to accept training in the installing site.



Quality assurance


We guarantee the goods offered are brand-new, unused, with latest design and suitable material made, and we guarantee the specification of the equipments is consonance with the contract.
We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc that all belong to our responsibility.


Maintenance


Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
